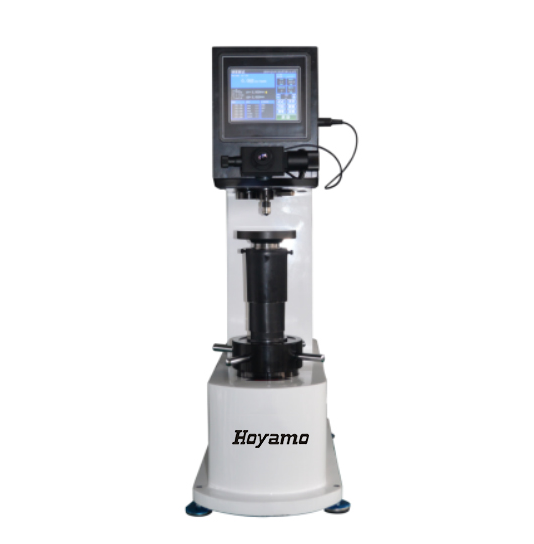

Hoyamo Vexus SHB3000N Touch Screen Digital Brinell Hardness Tester (8~650 HBW)

Loading Force:

N: 612.9, 980.7, 1226, 1839, 2452, 4903, 7355, 9807, 14710, 29420

kgf: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000

Dwell Time: 0~60s

Measuring Range: (8~650) HBW

Hardness Display: LCD Display，Printable output，internal printer

Brinell Ruler: HBW2.5/62.5 HBW10/100 HBW2.5/187.5 HBW5/125 HBW10/250 HBW10/500 HBW5/750 HBW10/1000 HBW10/1500 HBW10/3000

Magnification of Eyepiece: 20X

Max.height of Specimen: 200mm

Distance from intender to body: 135mm

Min Measuring Unit: 0.625µm

Power supply: AC220+5%,50~60Hz

Dimension: 550x210x750mm

Gross/Net Weight: 160kg/130kg

Executive Standard: GB/T4340、JIS Z2245、ASTM—E92、ISO6507

Standard Accessories:

• Main body

• 20X Digital Measuring Objective

• Hardness Block HBW 10/3000

• Hardness BlockHBW 5/750

• Ø10mm Steel Ball Intender

• Ø5mm Steel Ball Intender

• Ø2.5mm Steel Ball Intender

• Ø200mm Working Stage

• Ø60mm Working Stage

• Ø40mm Vshape Anvil

• Power Cord

• Toolbox

• 232 wiring

• Dust Cover

• Certificate / warranty card / instruction / packing list
