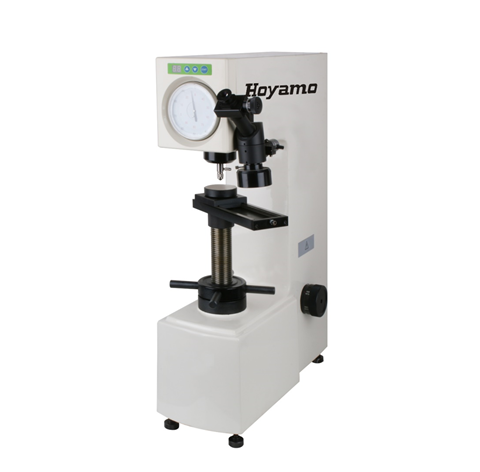

Hoyamo SHR187.5 Electronic Universal Hardness Tester

Rockwell Scales: HRA, HRB, HRC

Rockwell Testing Force: 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N)

Brinell Scales: HBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5

Brinell Testing Force: 31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N)

Vickers Scales: HV 30、HV100

Vickers Testing Force: 30Kgf(294.2N)、100Kgf(980.7N)

Rockwell Hardness Indication: Analogue Display

Rockwell Resolution: 0.5HR

Loading Control: Electronic

Magnification of Microscope: Brinell:37.5x; Vickers:75x

Dwell Time: Adjustable 2~60s

Max. Height Of Specimen: Rockwell:170mm; Brinell, Vickers:140mm

Instrument Throat: 165mm

Dimension(LxWxH): 520 x215 x700mm

Packing Dimension: 650 x370 x960mm

Power supply: AC 220V/50Hz;AC110V/60Hz

Gross/Net Weight: 110Kg/90Kg

Execution Standard: ISO 6508，ASTM E18，JIS Z2245，GB/T230

Standard Delivery：

• Instrument

• Hardness Block（2033）HRC

• Hardness Block（5770）HRC

• Hardness Block（85100）HRB

• Hardness Block HV30

• Hardness Block HBW2.5/187.5

• Slide Testboard

• Set of Weights

• Microscope

• 15X Electronic Measuring Eyepiece

• 2.5X Electronic Measuring Eyepiece

• 5X Vickers Objective

• Warranty Card / Qualified Certificate

• Ø1.588mm Ball Intender

• Vickers Intender

• Φ2.5mm Brinell Intender

• Φ5mm Brinell Intender

• Cone Diamond Intender

• Ø150mm Flat Anvil

• Ø60mm Flat Anvil

• Ø40mm Vshape Anvil

• Power Cord

• Bubble Level Meter

• Toolbox

• Dust Cover

• Operation Manual / Packing List

Optional Accessories：

• 1/8” Ball Intender

• Ø1/8” Steel Ball

• 1/4” Ball Intender

• Ø 1/4” Steel Ball

• 1/2” Ball Intender

• Ø 1/2” Steel Ball
