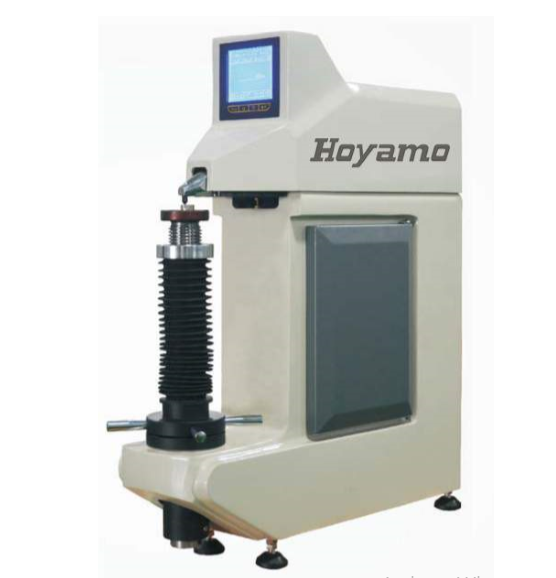

Hoyamo SHR-150N Rockwell Hardness Tester (150Kgf(1471N))

Preliminary Test Force: 10Kgf(98.1N)

Test Force: 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)

Rockwell Scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV

Superficial Rockwell Scale: 15T, 30T, 45T; 15W, 30W, 45W; 15X, 30X, 45X; 15Y,30Y, 45Y; 15N, 30N, 45N

Full Rockwell Scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, 15T, 30T, 45T; 15T, 30T, 45T; 15W, 30W, 45W; 15X, 30X, 45X; 15Y,30Y, 45Y; 15N, 30N, 45N

Data memory: max 400 items of test results stired automatically

Dwell Time: 2-60s adjustable

Display: high definition backlight LCD

Resolution: 0.1HR

Data output: RS-232

Loading control: Auto loading/dwell/unloading

Conversion Scale: HRC, HRB, HRA, HV, HK, HBW, etc

Max. Height of Specimen: 260mm

Insstrument Throat: 150mm

Power Supply: AC 220V/50Hz;AC110V/60Hz

Dimension: 710 x 210 x 830mm

Packing Dimension: 820×520×1000 (mm)

Net Weight /Gross: 125/95kg

Execution standard: GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18
