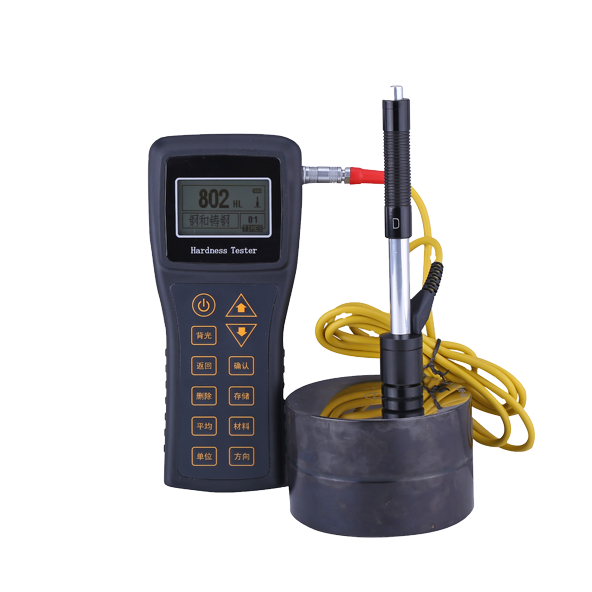

Hoyamo SHL-150 Portable Leeb Hardness Tester (170-960HLD)

Measuring range: HLD (170-960)HLD

Measurement direction: 360°

Hardness system: Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore

Display: LCD, 128×64 graphics dot matrix LCD

Data storage: 48～350 groups (impact times 32～1)

Limit setting range: Same as measurement range

Charger: 5VDC, 220VAC

Charging time: 2 to 3.5 hours

Battery: 3.7V, (1400mAh) Lithium Battery

Ambient temperature: 0～40°C

Storage temperature: -25 to 70°C

Working hours: About 100 hours (without backlight)

Dimensions: 179×77×35mm (main part)

Weight: About 175g (main part)

Standard configuration:

• Main part

• D type impact device

• Small support ring

• Nylon Brush (I)

• High value Leeb hardness block

• Charger

• Communication cable

Datasheet
