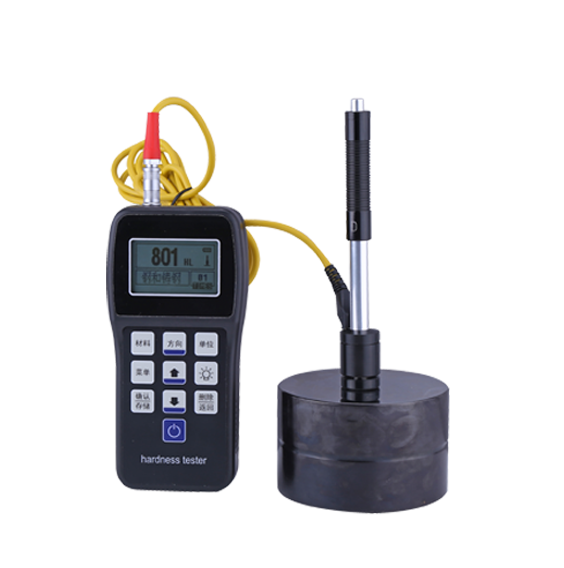

Hoyamo SHL-140 Portable Leeb Hardness Tester (170-960HLD, OLED, 128×32)

Measuring range: HLD (170-960)HLD

Measurement direction: 360°

Hardness system: Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore

Display: OLED, 128×32 graphics dot matrix LCD

Data storage: 48～350 groups (impact times 32～1)

Limit setting range: Same as measurement range

Battery: 3V, (1200mAh) Alkaline Battery

Ambient temperature: 0～40°C

Storage temperature: -25 to 70°C

Continuous working time: About 40 hours

Dimensions: 148×71×33mm (main part)

Weight: About 165g (main part)

Standard configuration:

Main part

D type impact device

Small support ring

Nylon Brush (I)

High value Leeb hardness block

Optional accessories:

Various shaped impact devices and support rings

High, medium and low value hardness block

Datasheet
