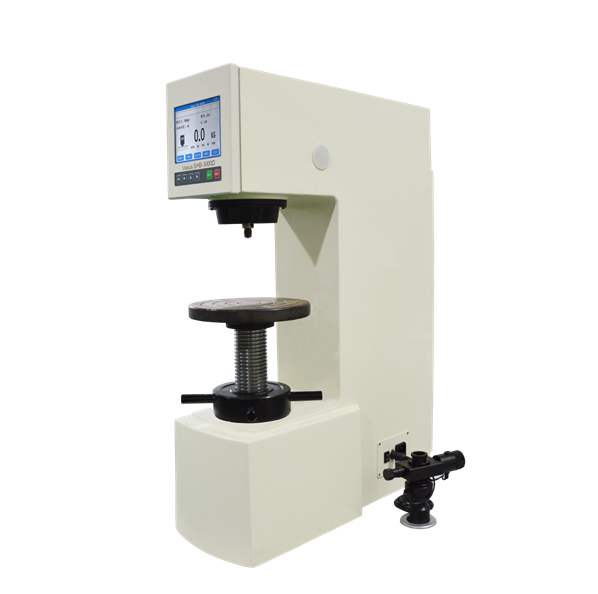

Hoyamo SHB-3000D Color Touch Screen Digital Brinell Hardness Tester (8~650 HBW)

Loading Force:

N: 612.9, 980.7, 1226, 1839, 2452, 4903, 7355, 9807, 14710, 29420

kgf: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000

Data Transfer: Bluetooth；RS232 is optional

Measuring Range: (8~650) HBW

Hardness Display: LCD Display

Hardness Conversion: HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、 HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB

Magnification of Eyepiece: 20x Mechanic Microscope

Max.height of Specimen: 225mm

Instrument Throat: 135mm

Power supply: AC220V/50Hz；110V/60Hz

Conversion Standard: ASTM、DIN

Languages: Chinese, English, German, Portuguese, Turkish, Czech, Korean

Dimension: 545 x235 x755mm

Gross/Net Weight: 160kg/130kg

Executive StandardGB/T4340、JIS Z2245、ASTM—E92、ISO6507

Accuracy of Brinell Hardness Testing:

Hardness Range:

HBW≤ 125: Max. Tolerance:≤± 3.5％; Repetition: ≤ 3.5％

125＜HBW≤225: Max. Tolerance: ≤± 2.5％; Repetition≤ 3.0％

HBW＞ 225: Max. Tolerance: ≤± 2.0％: Repetition≤ 2.5％

Standard Delivery:

• Instrument Main Body

• 20x Mechanic Microscope

• Hardness Block HBW/3000/10

• Hardness Block HBW/750/05

• Ø10mm Ball Indenter

• Ø5mm Ball Indenter

• Ø2.5mm Ball Indenter

• Ø 200mm Flat Anvil

• Ø 60mm Flat Anvil

• Ø 40mm V-shape Anvil

• Power Cable

• Accessories Box

• Level Screw

• Anti-dust Cover

• Instrument Manual/ Qualified Certificate

Datasheet
