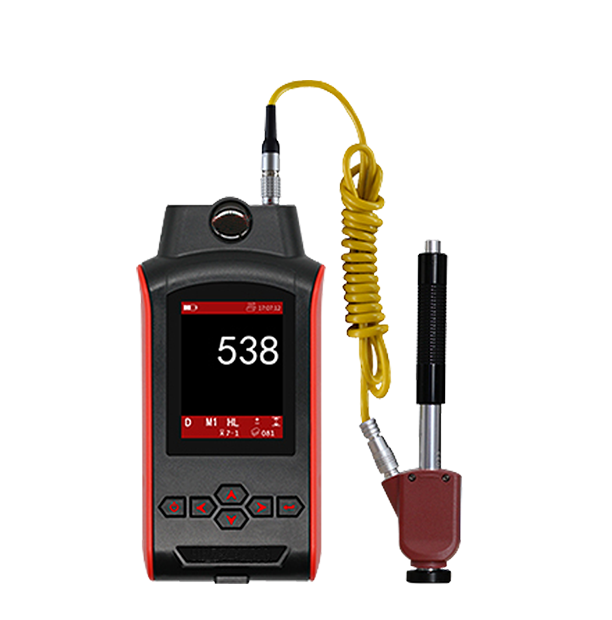

Hoyamo SH-660 Portable Leeb Hardness Tester

Accuracy / Repeatability: ±4HL/HRC0.2 (0.3% at HL=800)

Display: High contrast color TFT 240 x 320

Hardness scale: HL/HRC/HRB/HB/HV/HS/HRA/σb

Measuring range: HL170~960/ HRC1.3~74.7/ HRB1.2~139.7/ HB28~1027/ HV45~1221/ HS4.0~112.1/ HRA1.3~88.5/ MPa118~3315N/mm²

Probe:

Digital probe D/C/DC/D+15/DL/E

Wireless probe D/C/DC/D+15/DL/E (optional), Reading probe D (optional)

Materials and conversion curves: 11 common metal materials, 75 curves

Memory: 999 data

Interface: USB / Bluetooth (optional)

Statistics function: Average / Max. / Min. / S. value

Re-calibration: Allowed by user

Indicator: Low battery

Language: English, Chinese, Russian, Korean, French, Italian, German, Turkish, Spanish

Power on/off: Auto / Manual

Power supply: AA alkaline battery / USB power supply

Working environment: -20oC~+70oC

Dimension (mm): 145x70x30

Net weight (g): 145g

Standards: Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Standard Delivery:

• Main unit 1

• Digital probe D 1

• Test block D 1

• Small support ring 1

• Cleaning brush 1

• Probe cable 1

• USB cable 1

• Operation manual 1

• Test Certificate 1

• Carrying case

Optional Accessory:

• Digital probe C/DC/D+15/DL/E

• Reading probe D

• Wireless probe D/C/DC/D+15/DL/E

• Special support rings

• Standard support ring for probe D

• Small support ring

• Impact body D

• Carbide ball tip D

• Test block D with certificate

• Test block D w/o certificate

Portable Leeb Hardness Tester

Features:

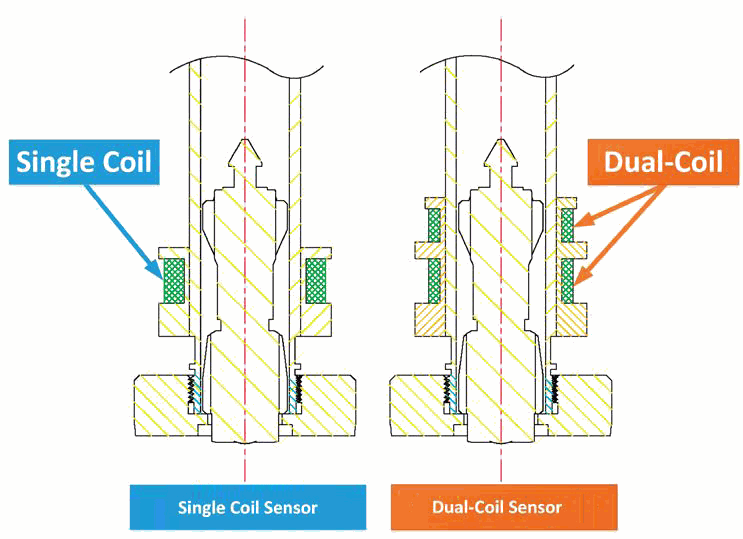

Patent dual- coil technology

All probe used with SH-660 are digital type

Cost- effective with reading probe (optional)

High repeatability accuracy: +/-4 HL (or 0.3% @HL800)

High linear accuracy for any angles

TFT color display

Auto compensate error for different impact direction

Powered by AA batter y or USB power supply

The tester can be attrac ted to the work piece with magnetic base (optional)

Statistics value can be calculated automatically

Up to 10 kinds of menu language

Data managing software on PC

Power on/off automatically or manually
