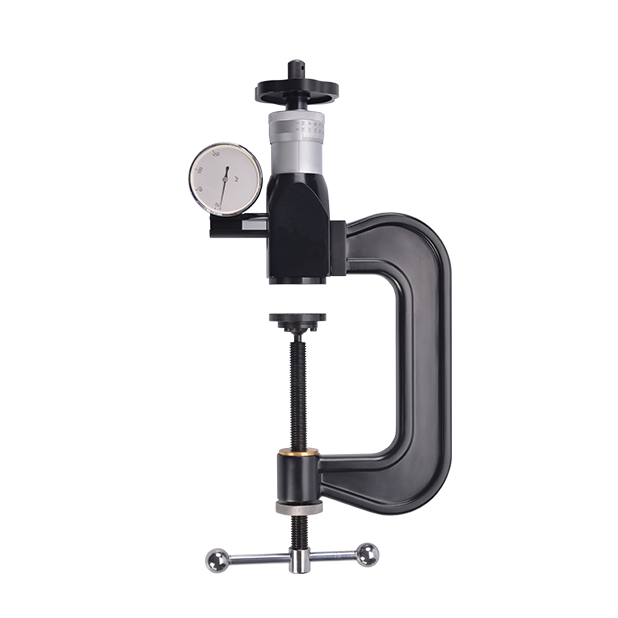

Hoyamo PHR-4-3 C-Shape Rockwell Hardness Tester (100 x 75mm)

Opening Size: 100 x 75mm

Initial Test Force: 10 kgf

Total Test Force: 60 kgf, 100 kgf, 150 kgf

Test Head:

120°Diamond Indenter

1.588 mm carbide alloy ball

Testing Resolution: 0.5HR

Indication Error: Complying with ISO6508,ASTM E18 standards

Repeatability Error: Complying with ISO6508,ASTM E18 standards

Test Range: HRA, HRB, HRC…HRV etc, 15 scales.

Dimension: 510x380x180mm

Weight/ Weight/ Gross Weight: 2.2 kg/8.5 kg

Application Range: Common metal including iron and steel, copper, aluminum

Standard Delivery:

• Instrument Main Body

• 120° Diamond Indenter

• V Anvil

• Carrying Case

• Warranty Card / Qualified Certificate

• Rockwell Hardness Block

• 1.588 mm Carbide Alloy Ball Indenter

• Flat Anvil

• Operation Manual

• Packing List

Datasheet
