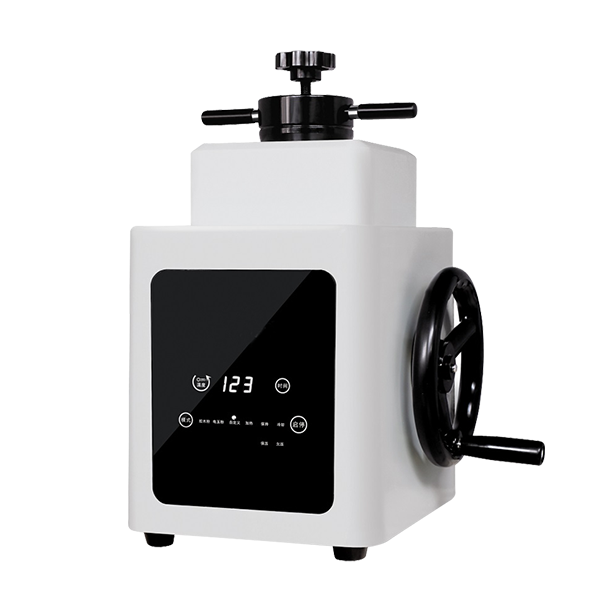

Hoyamo HXQ-30 Metallographic Mounting Press (Φ30mm)

Sample diameter: Φ30mm

Heating Range: Max190℃

Holding time Range: 0-30min

Machine Power: ≦800w

Input voltage: 220V/50HZ

dimension: 260mm×360mm×450mm

Net weight: 35kg

This machine is designed for purpose of the last process before polishing. It is setting up those small, difficult-to-hold or irregular specimens for metallographical test. It can facilitate polishing and watch properly the ideal material structure and measure the hardness of the material by hardness tester. The inserts for this machine are limited to thermosetting materials only .The punching temperature of different thermosetting materials can be adjusted depending upon the features of materials .
