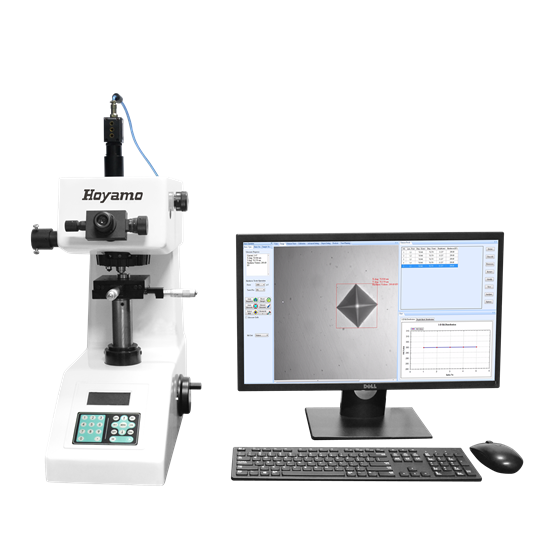

Hoyamo HMV-8920 Auto/Semi Auto Micro Vicker Hardness Tester (1HV~3000HV, full automatic)

Type/software: full automatic

Hardness Scale: HV

Hardness Conversion: HV, HR, HRC, HB, HK

Loading Force:

N: 0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80

gf: 10、25、50、100、200、300、500、1000

Indentation Measurement: Analogue Eyepiece with Mechanic Micrometer (To measure the indention by AutoVicker Testing Software system)

Loading Control: Automatic (Loading, Dwell, Unloading)

Magnification of Microscope: Observation:10x/40x; Measurement:10x/40x

Magnification on of Eyepiece: 10x Analogue Eyepiece

Dwell Time: Adjustable 5~60s

Testing Range: 1HV~3000HV

Analogue X-Y Anvil: Size:100x100mm; Travel:25 x25mm; Resolution: 0.25um

Optical Channel: Two-Channel: Eyepiece/camera switchable

Illumination: Adjustable Halogen light-source

Max. Height of Specimen: 90mm

Instrument Throat: 120mm

Operating Temperature: 23±5℃

Operating Humidity: <65%

Power Supply: AC220V/50Hz; AC110V/60Hz

Dimension (LxWxH): 530×290×490mm

Gross/Net Weight: 50Kg/40Kg

Software: HDS8920

Standard Delivery：

• MicroVickers Intender

• X-Y Working Stage

• Hardness Block (700~800) HV1

• Flat Precision Clamp

• Hardness Block (400~500) HV0.2

• Digital Micrometer Head

• Camera Adapter

• 10x Analogue Eyepiece

• 10x Objective

• 40x Objective

• Thin-Piece Clamp

• Warranty Card / Qualified Certificate/ Operation Manual / Packing List

• Unequal Specimen Clamp

• USB CMOS Camera

• Dust Cover

• Toolbox

• Power Cord

• Filament Clamp

• Flat Precision Clamp

• Dell PC System

• Vickers Measuring Software
