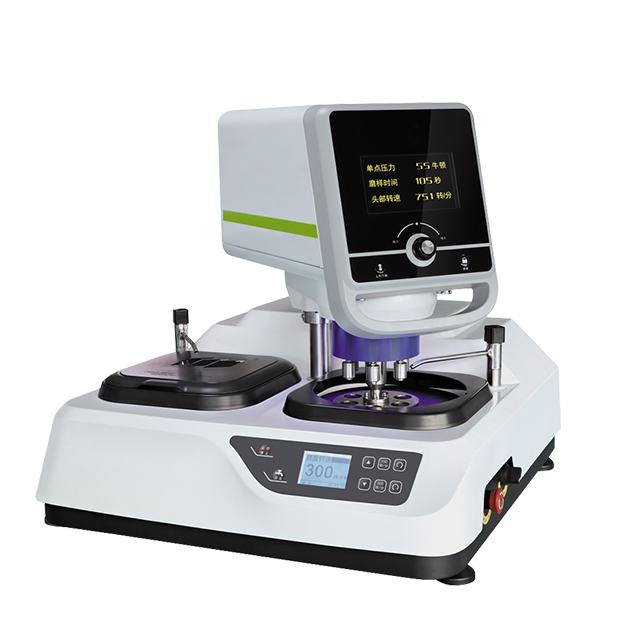

Hoyamo HMP-19 Metallographic Grinding Polishing Machine (φ250mm/ φ203mm)

Wheel diameter: φ250mm(or φ203mm)

Wheel quantity: 50-1000r/min or 150r/min and 300r/min

Power head speed: 50-150r/min

Loading range: 5-60N

Sample preparation time: 5-995S

Sample diameter: φ30mm(φ22mm or φ45mm)

Input power: 1.1KW

Input Voltage: AC220V 50HZ

Dimension: 758mm x785mm x687mm

Net weight: 128kg

Gross weight: 152kg

HMP-19 automatic polishing machine using advanced sample preparation capabilities, so sample preparation results is with consistency and reproducibility.

This machine adopts the advanced microprocessor control system, which control sample preparation process. Grinding disc support bidirectional rotation, speed within a predetermined range can be adjusted. Pneumatic single point loading, it can support up to grinding and polishing 6 pies specimen simultaneously, also suitable for the Sigle specimen. sample preparation pressure, time setting is intuitive and convenient.
