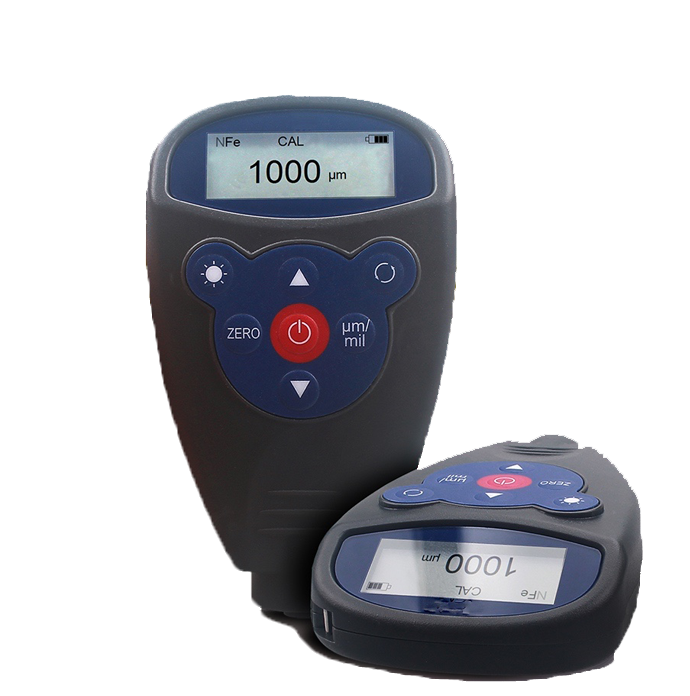

Hoyamo HMH-2 Magnetic or Non-magnetic Coating Thickness Gauge (0-1250 μm)

Measuring range: 0-1250 μm

Minimum curvature: 5mm convex/5mm concave

Minimum substrate: 10×10mm

Thinnest substrate: 0.4mm

Unit: Μm/mil

Size: 110mm x 65mm x30mm

Measurement deviation: zero calibration ±（1+3%H）；two-point calibration±【（1%～3%H）】H+1.5

Power supply: 2 * AA batteries

Weight: 90g

Ambient temperature: 0-40℃

Relative humidity: ≤85%

• Meter device 1

• Standard films 5

• Base substrate 2

• Packing box 1

• User Manual 1

Feature:

Thickness measurement using both Magnetic Method and Eddy Current Method to measure the non-magnetic coating on a magnetic metal substrate, or non-conductive coating on non-magnetic metal substrate.

Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.

Fast automatic identification of iron and non-iron substrate.

Speaker beep while operating.

Power-off automatically when idle; manually power-off available.

Negative display function to ensure the accuracy of zero point calibration.

Ultra-low power consumption, less than 10 μA in standby mode.
