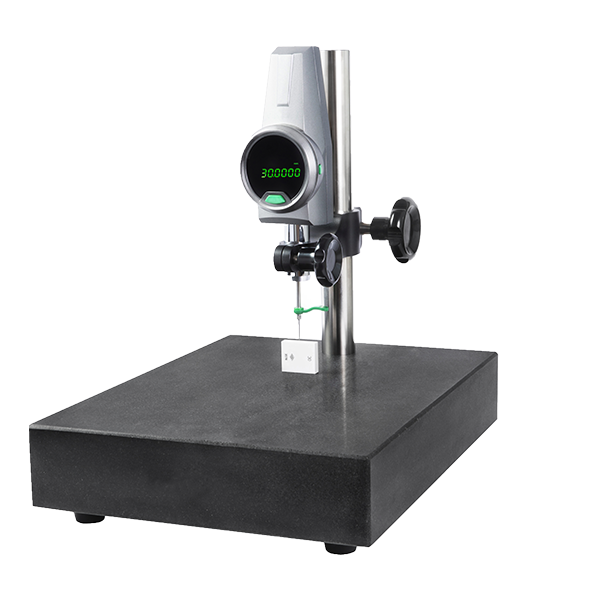

Hoyamo HG100-430C Digital Height Gauge (0-100mm, ≤3um)

Measurement Range: 0-100mm

Accuracy（20℃）: ≤3um

Minimum: 0.1μm、1μm(Switchable)

Measurement Speed: Maximum 5000mm/s

Force: 1.0-1.5N

External Output: Data Interface、USB

Display: 8 Bit Green High Brightness LED Display

Probe: Spherical Probe, Flat Probe, Needle Probe

Unit: mm、inch( Convertible )

Operating Environment: Temperature：0-40°C Humidity：20-80%

Measuring Table: 400mmx300mm Marble

Power Adapter: Input：AC100-240V50/60HZ Output：DC5V/1A

Standard Accessories: Marble Table，Spherical Probe, Flat Probe, Needle Probe

Optional Accessories: Special-shaped Probe, Low Force Measuring Device, Data Transmission Software, Mobile Power, Foot Switch

Dimension: 400x300x387mm

Digital Height Gauge

Production Feature：

High Accuracy≤1um,High Resolution 0.01um

Height、Depth、Thickness、Flatness Measurement

Steps and Deep Hole Measuring

Reset from Anywhere

Replaceable Probe

8-digit highlight LED digital display device

Wired Data Output

Optional power bank

High Accuracy Marble Measuring Table

Production Feature：

High Accuracy≤1um,High Resolution 0.01um

Height、Depth、Thickness、Flatness Measurement

Steps and Deep Hole Measuring

Reset from Anywhere

Replaceable Probe

8-digit highlight LED digital display device

Wired Data Output

Optional power bank

High Accuracy Marble Measuring Table
