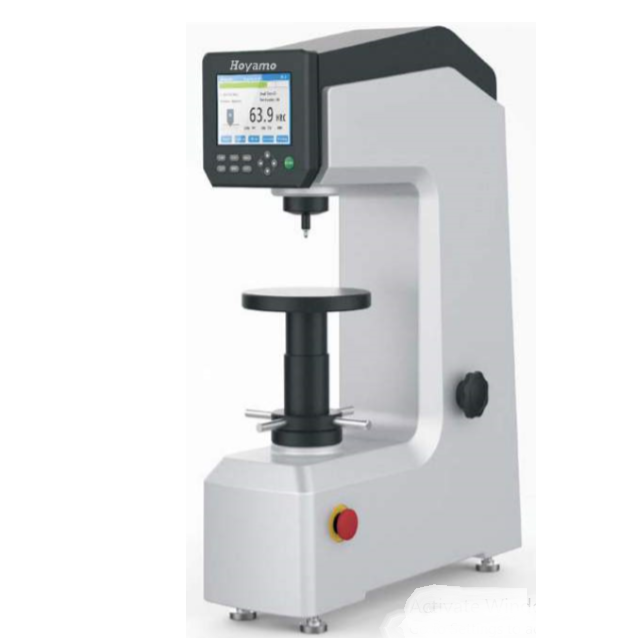

Hoyamo DigiRock DR3 Touch Screen Digital Rockwell Hardness Tester

Rockwell Scales: HRC ,HRB, HRA, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Preliminary Test Force: 10kgf(98.07N)

Test Fore: 60Kgf(558.4N), 100Kgf(980.7N), 150Kgf(1471N)

Dwell Time: Adjustable 1-60s

Display: 5.2” color touch screen , resolution: 640x480

Resolution: 0.1HR

Loading Control: auto loading/dwell/unloading

Language: Chinese, English, German, Portuguese, Turkish, Czech, Korean

Hardness conversion: HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N, HR30N, HR45N, HS, HRF, HR1ST, HR30T, HR4ST, HRB

Conversion standard: ASTM, DIN

Correction range : -3.0HR-+3.0HR, step value 0.1HR

Data memory: 2000 group single data, line chart of group data function, respectively provide single data viewing and group data viewing

Print: optional wireless printer

Max. Height Of Specimen: 175mm

Instrument Throat: 165mm

Power supply: AC220V/50Hz; AC 110V/60Hz

Dimension(LxWxH): 546x182x755mm

Packing Dimension: 620x460x870mm

Gross/Net Weight: 120Kg/90Kg

Execution Standard: EN-ISO 6508，ASTM-E18，GB/T230.2, JJS Z2245
