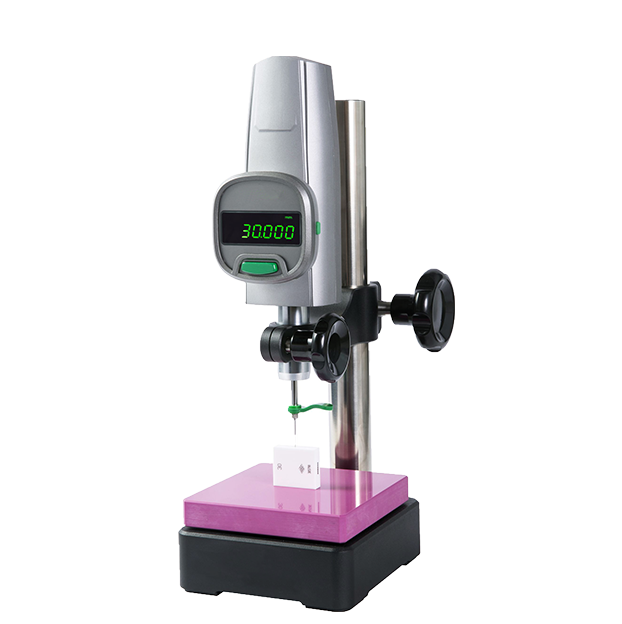

Hoyamo HG50-1313A Digital Height Gauge (0-50mm)

Measurement Range: 0-50mm

Accuracy: ≤3um

Minimum: 1μm

Measurement Speed: Maximum 5000mm/s

Force: 1.0-1.5N

External Output: Data Interface、USB

Display: 7 Bit Liquid Crystal Display Device

Probe: Spherical Probe, Flat Probe, Needle Probe

Unit: mm、inch( Convertible )

Operating Environment: Temperature：0-40°C Humidity：20-80%

Measuring Table: 130x130mm Ceramic

Power Adapter: Input：AC100-240V50/60HZ Output：DC5V/1A

Standard Accessories: Ceramic Table，Spherical Probe, Flat Probe, Needle Probe

Optional Accessories: Special-shaped Probe, Mobile power supply, Low Force Measuring Device

Dimension: 200×138×397mm

Weight: 11.6kg

Production Feature：

Accuracy≤3um, Resolution 1um

Height、Depth、Thickness、Flatness Measurement

Steps and Deep Hole Measuring

Reset from Anywhere

MAX, MIN, MAX-MIN Measurement

Replaceable Probe

7 Bit Liquid Crystal Display Device

Wired Data Output

Optional Mobile Power Supply

High Accuracy Ceramic Measuring Table
