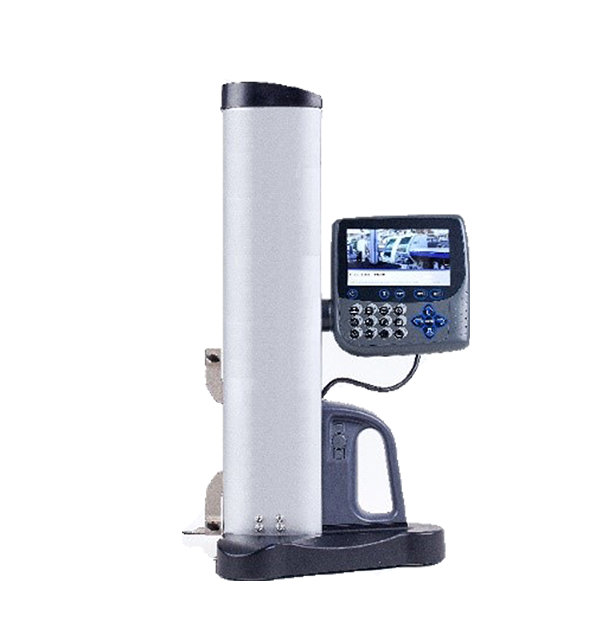

Hoyamo HGS-600E Height Gauge (610mm, 875mm)

Measuring Range[mm]: 610

Measuring Range Second Extension [mm]: 875

Resolution[mm]: 0.01/0.001/0.0001

Display: Color Display

Driving System: motor

Air System: With Air Pump

Temperature Compensation System: Basic Type

Movement Speed: Max 75mm/s (Motor; No Manual)

System Response Speed: 300mm/s

Force Measuring[N]: 1.5+/-0.5

Needle Check Gauge: yes

IP Protection Level: IP 40

Unit: mm in

Data Output: USB; VDX

Certificate: Plant Calibration Report

Height [mm]: 1009

Weight [kg]: 22

Datasheet
