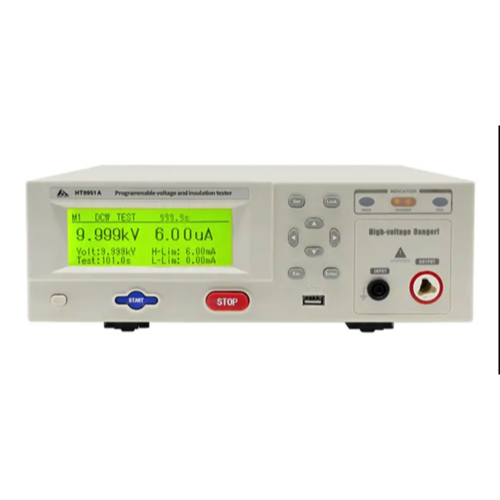

Hopetech HT9951A PV Safety Comprehensive Tester (0.5kV~10KkV)

Display: 95mm*20mm monochrome LCD display

Test Parameters: Withstand voltage/leakage current/insulation resistance

AC and DC Withstand Voltage Test

Voltage Resolution: 1V

Voltage Accuracy: 3%

Frequency: 50Hz/60Hz

AC Output: ——

AC Leakage current: 10mA

DC Output: 0.5kV~10KkV

DC Leakage current: 5mA

Current Resolution: 1μA

Current Accuracy: ±(3%+2 counts)

Voltage Rise Time: 0.1s~999.9s

Testing Time: 0.1s~999.9s

Arc Test Function: Level 1~9

Insulation Resistance Test

Insulation IR Range: 100KΩ~99GΩ

Insulation IR Accuracy: 5% (100KΩ-10GΩ)；20% (10GΩ-99GΩ)

Voltage Output: 0.1KV~2.0KV

Memory Group: 6 group

Interface: Handler，RS485, RS232(Optional)

Power Supply: Voltage: 198V-240V AC Frequency: 47Hz-63Hz, rated power; 100VA

Size: 374mm*280mm*99mm; Gross weight: 7.5kG

Accessories: 9950 HV line, 9900 sampling line, power cord
