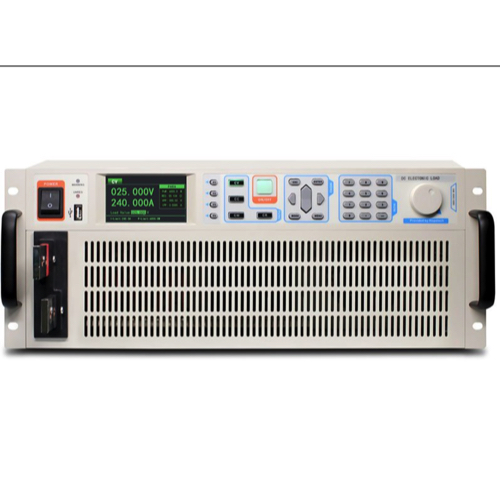

Hopetech HT8802 Programmable DC Electronic Load (15V/150V; 24A/240A; 8000W)

Input voltage: 15V/ 150V

Input current: 24A/ 240A

Input power: 8000W

Min.operation voltage: 1.5V@240A

Min rise time@ FS current: 25us

CV mode

Range: 15V/ 150V

Resolution: 0.2mV/ 2mV

Accuracy: ±(0.03%+0.02%FS)

CC mode

Range: 24A/ 240A

Resolution: 0.3mA/ 3mA

Accuracy: ±(0.03%+0.02%FS)

CR mode

Range: 0.02Ω~6kΩ

Resolution: 16Bits

Accuracy: ±0.1%

CP mode

Range: 8000W

Resolution: 16Bits

Accuracy: ±（0.1%+0.1%FS）

Dynamic mode

Ta＆Tb: 10us~50s

Min.resolution: 10us

Min. rise time: 3A/us

Read-back voltage

Range: 15V/ 150V

Resolution: 0.1mV/ 1mV

Accuracy: ±(0.015%+0.01%FS)

Read-back current

Range: 24A/ 240A

Resolution: 0.1mA/ 1mA

Accuracy: ±(0.03%+0.02%FS)

Read-back ripple

Range(U/I): 150V/240A

Bandwidth: 10Hz~250kHz

Accuracy: ±1%

Protection range

Over-power protection: 8400W

Over-current protection: 252A

Over-voltage protection: 158V

Over-temperature protection: ≒85℃

Dimension (L*W*D): 624mm* 483mm* 177.8mm

Gross Weight: 50Kg
