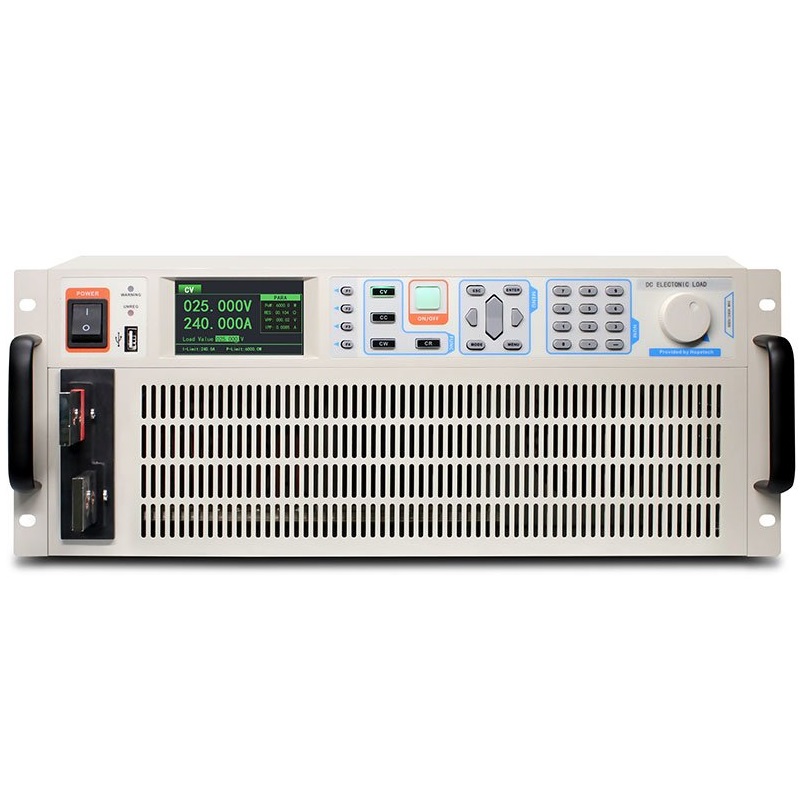

Hopetech HT8502-M Programmable DC Electronic Load (150V, 240A, 5000W)

Input voltage/Current:

15V/24A

150V/240A

Input power: 5000W

Min. operation voltage: 1V@240A

Min rise time@ FS current: 25us

CV mode

Range/Resolution:

15V/0.2mV

150V/2mV

Accuracy: ±(0.03%+0.02%FS)

CC mode

Range/Resolution:

24A/0.3mA

240A/3mA

Accuracy: ±(0.03%+0.02%FS)

CR mode

Range: 0.02Ω~6kΩ

Resolution: 16Bits

Accuracy: ±0.1%

CP mode

Range: 5000W

Resolution: 16Bits

Accuracy: ±（0.1%+0.1%FS）

Dynamic mode

Ta＆Tb:10us~50s

Min.resolution:10us

Min. rise time:3A/us

Read-back voltage

Range/Resolution:

15V/0.1mV

150V/1mV

Accuracy: ±(0.015%+0.01%FS)

Read-back current

Range/Resolution:

24A/0.1mV

240A/1mA

Accuracy: ±(0.03%+0.02%FS)

Read-back ripple

Range(U/I): 150V/240A

Bandwidth: 10Hz~250kHz

Accuracy: ±1%

Protection range

Over-power protection: 6250W

Over-current protection: 252A

Over-voltage protection: 158V

Over-temperature protection: ≒85℃

Specification

Dimension (L*W*D): 624mm*483mm*177.8mm

Gross Weight: 50Kg
