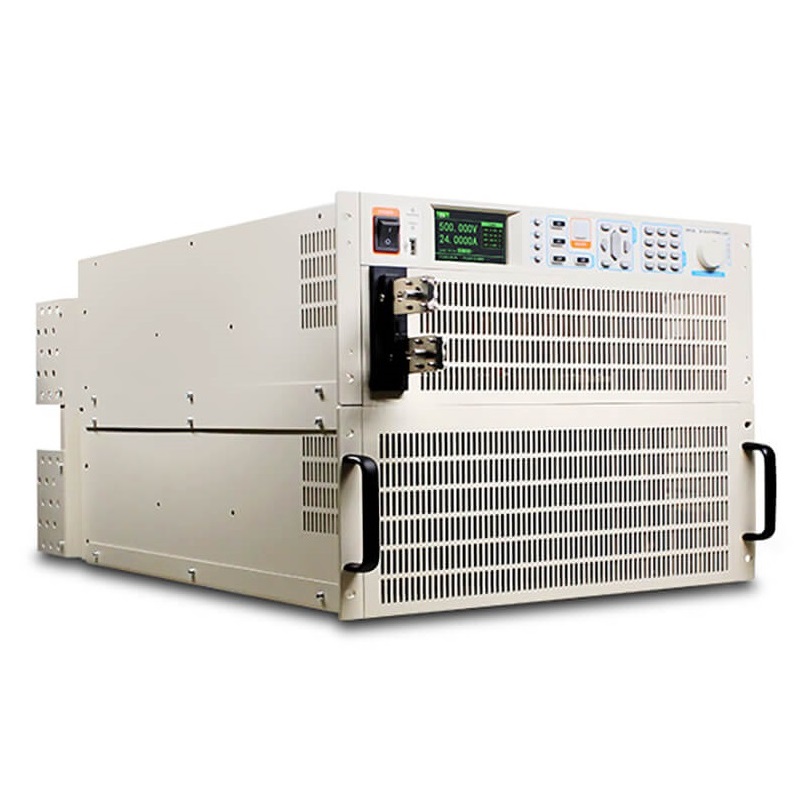

Hopetech HT8123C-M High Power Programmable DC Electronic Load (150V, 500A, 12kW)

Input voltage/Current:

15V/50A

150V/500A

Input power: 10kW

Min. operation voltage: 1.5V@500A

Min rise time@ FS current: 25us

CV mode

Range/Resolution:

15V/0.2mV

150V/2mV

Accuracy: ±(0.03%+0.02%FS)

CC mode

Range/Resolution:

50A/0.7mA

500A/7mA

Accuracy: ±(0.03%+0.02%FS)

CR mode

Range: 0.01Ω~3kΩ

Resolution: 16Bits

Accuracy: ±0.1%

CP mode

Range: 12kW

Resolution: 16Bits

Accuracy: ±（0.1%+0.1%FS）

Dynamic mode

Ta＆Tb: 10us~50s

Min.resolution:10us

Min. rise time: 3A/us

Read-back voltage

Range/Resolution:

50V/0.1mV

500V/1mV

Accuracy: ±(0.015%+0.01%FS)

Read-back current

Range/Resolution:

50A/0.3mV

500A/3mA

Accuracy: ±(0.03%+0.02%FS)

Read-back ripple

Range (R/I): 150V/500A

Bandwidth: 10Hz~250kHz

Accuracy: ±1%

Protection range

Over-power protection: 12600kW

Over-current protection: 525A

Over-voltage protection: 158V

Over-temperature protection: ≒85℃

Specification

Dimension (L*W*D): 624mm*483mm*177.8mm

Gross Weight: 50kg
