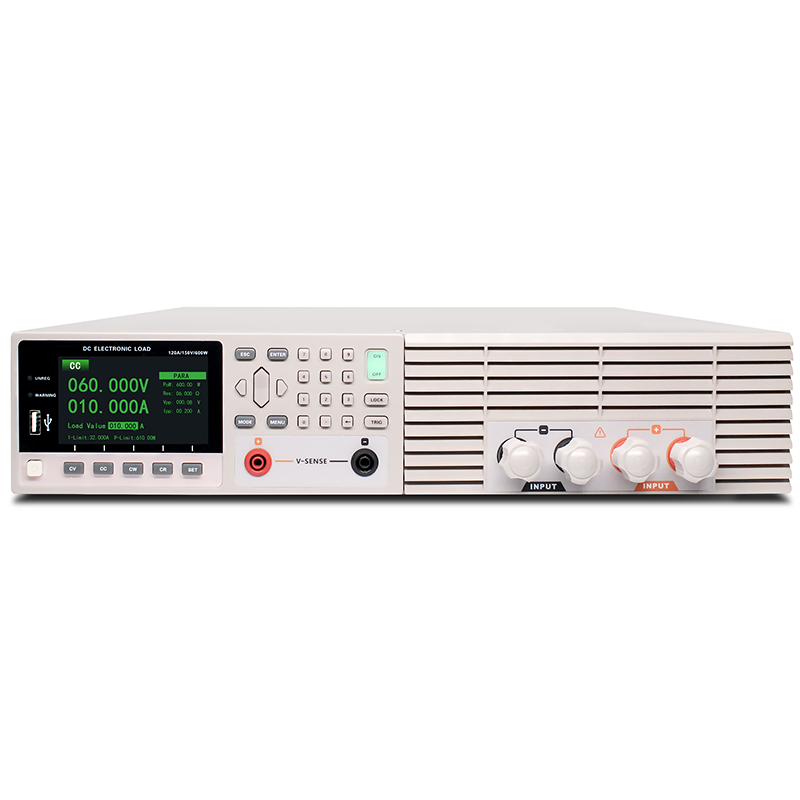

Hopetech HT8122B Programmable DC Electronic Load (500V, 60A, 1200W)

Input voltage/Current:

50V/6A

500V/60A

Input power: 1200W

Min. operation voltage: 4V@60A

Min rise time@ FS current: 25us

CV mode

Range/Resolution:

50V/0.7mV

500V/7mV

Accuracy: ±(0.03%+0.02%FS)

CC mode

Range/Resolution:

6A/0.09mA

60A/0.9mA

Accuracy: ±(0.03%+0.02%FS)

CR mode

Range: 0.06Ω~83kΩ

Resolution: 16Bits

Accuracy: ±0.1%

CP mode

Range: 1200W

Resolution: 16Bits

Accuracy: ±（0.1%+0.1%FS）

Dynamic mode

Ta＆Tb: 10us~50s

Min.resolution:10us

Min. rise time:3A/us

Read-back voltage

Range/Resolution:

50V/0.3mV

500V/3mV

Accuracy: ±(0.015%+0.01%FS)

Read-back current

Range/Resolution:

6A/0.04mV

60A/0.4mA

Accuracy: ±(0.03%+0.02%FS)

Read-back ripple

Range(U/I): 500V/60A

Bandwidth: 10Hz~250kHz

Accuracy: ±0.1%

Protection range

Over-power protection: 1260W

Over-current protection: 63A

Over-voltage protection: 525V

Over-temperature protection: ≒85℃

Specification

Dimension (L*W*D): 483mm*428mm*106mm

Gross Weight: 19.5Kg
