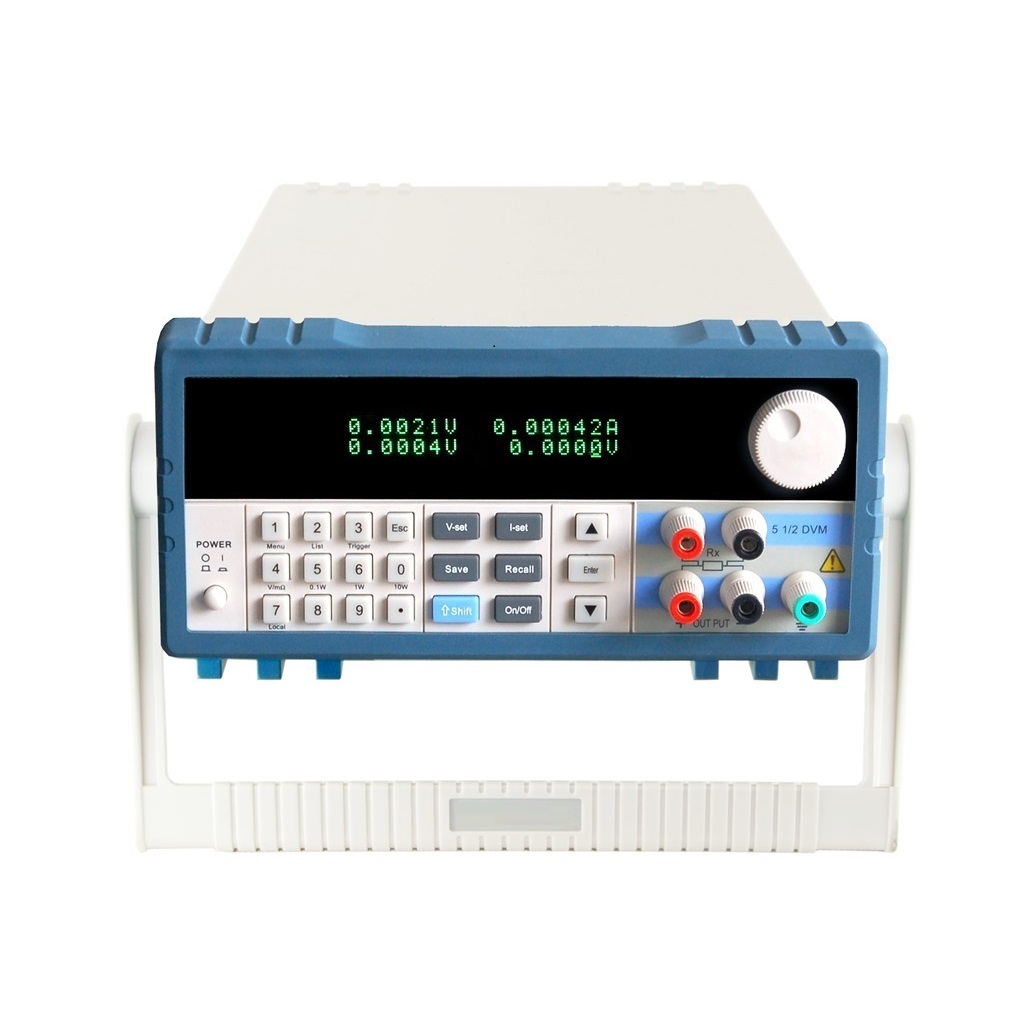

Hopetech HT6811 Programmable DC Power Supply (0-30V, 0-5A)

Output Rating:

Voltage: 0-30V

Current: 0-5A

Load Regulation:

Voltage: <0.01%+0.5mV

Current: <0.01%+0.1mA

Setting Value Resolution:

Voltage: 0.5mV

Current: 0.1mA

Readback Value Resolution:

Voltage: 0.1mV

Current: 0.01mA

Setting Value Accuracy:

Voltage: 0.01%+2mV

Current: 0.05%+1mA

Readback Value Accuracy:

Voltage: 0.02%+5mV

Current: 0.1%+5mA

Ripple:

Voltage: 3mvp-p

Current: 2mA rms

Volmeter Accuracy:

0-12V Accuracy: 0.02%+2mV

0-58V Accuracy: 0.02%+5mV

Milli ohmmeter accuracy:

10W. 0-1000mΩ Accuracy: 0.2%+3mΩ

1000-10000mΩ Accuracy: 0.2%+6mΩ

Working Condition: 0-40°C; 0-90%RH

Power Required: AC 120V/220V±10%; 50/60HZ

Weight: 6.5 Kg

Dimension: 214 mmW x 101.5mmH x 365 mmD
