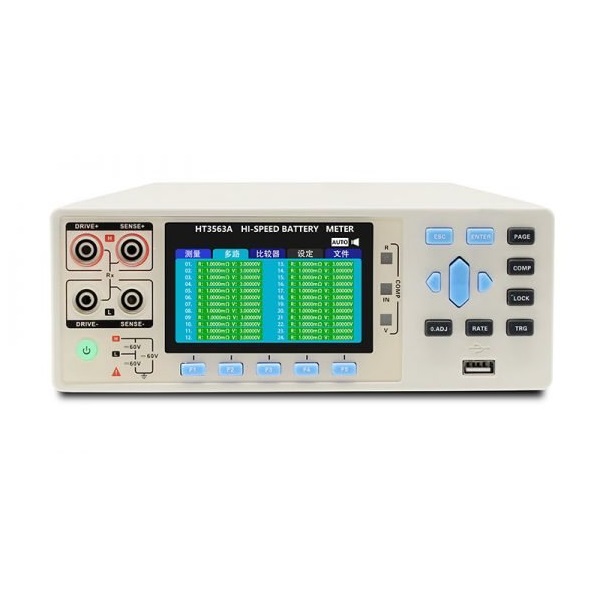

Hopetech HT3563-24 Multi-channel Precision BatteryTester (0.1μΩ~3kΩ, 10μV~60V, 24CH)

Display: 4.3 inch TFT-LCD display

Measurement parameters: ACR,DCV

Resistance:

Accuracy: 0.3%

Range: 0.1μΩ ～ 3kΩ

Voltage:

Accuracy: 0.01%

Range: 10μV～60V

Signal Source: Measurement current frequency:1kHz; Open circuit voltage: <5V; Test current: <100mA

Range: 7 different ranges - 3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ; Auto and manual modes are available in each range

Measuring speed: 100 meas/sec., 50 meas/sec., 20 meas/sec., 3 meas/sec.

Calibration: Short-circuit reset for all ranges;

Comparator: 30 sets of data records, 4 bins sorting, bin count

Others: data/report save, USB disk export,

Trigger mode: Internal/manual/external/bus trigger

Interface: RS-232/485, Handle (PLC interface), USB, Ethernet

Power supply: Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz;

Power (max): 15VA

Dimension (L*W*D): 325 mm*215 mm*96.5 mm

Weight: 3 kg

Standard accessories: HT9363A test clip, HT9800 communication cable, PB36 connector, power cord
