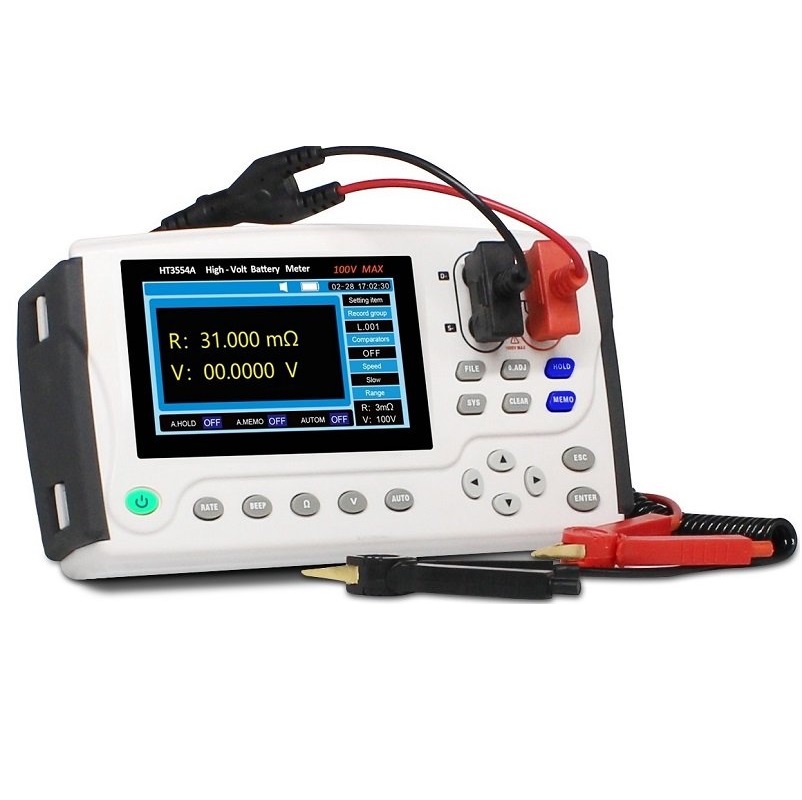

Hopetech HT3554A Portable Battery Tester (0.0001mΩ～30.000Ω; 0.00001V~100V)

Display: 4.3inch TFT-LCD display

Measurement items: ESR, DCV

Basic accuracy:

- Resistance: ±0.5%

- Voltage: ± 0.02%

Measurement range:

- Resistance: 0.0001mΩ~30.000Ω

- Voltage: 0.00001V~100.000V

Signal source: AC 1kHz; open circuit voltage: <5V; Test current: <150mA

Range:

- Resistance: 3mΩ/30mΩ/300mΩ/3Ω/30Ω

- Auto and manual test mode in 5-level range

Sampling rate: 20 meas/sec,3 meas/sec

Temperature: Range:-10°C ~60°C; Accuracy:±1°C

Correction: Short-circuit reset for all ranges

Comparator: 200 set storage data

Internal data storage: Store up to 2400 set test data(upgradable to 4800 set)

Trigger: Internal/auto trigger

Interface: USB, EXPORT(port execution hold function)

Power supply: 12V/1700mAh lithium battery, AA (LR6) Alkaline Batteries x 8

Maximum rated power: 4VA

Dimensions: 208 mm (L) x120mm (W) x 52.5mm (D),without sleeve, weight:0.81kg

Included accessory: HT9363B, HT9371, HT9348, USB mini cable, charger, 0370 belt
