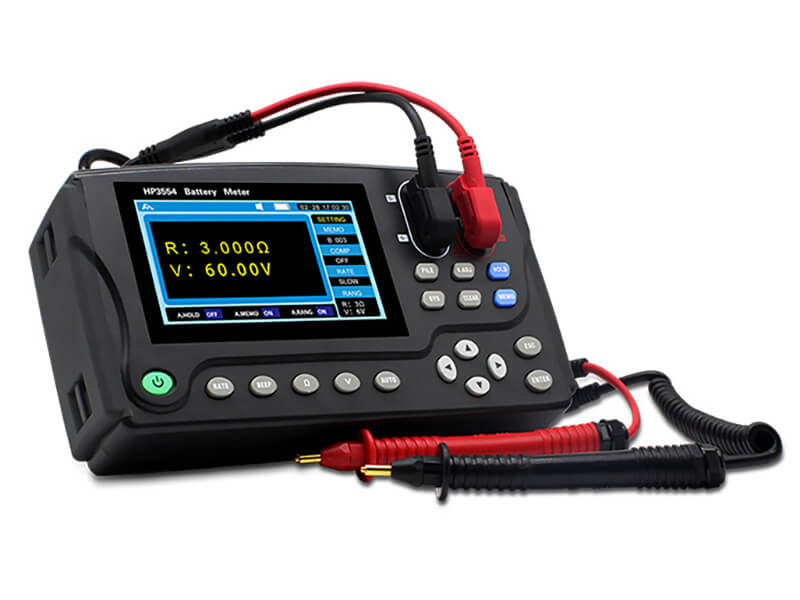

Hopetech 3554D Handheld Battery Tester (0.0001mΩ ~ 30.000Ω, 10μV~1000V)

Display: 4.3inch VFD display

Measurement items: ESR, DCV

Resistance

Range: 0.0001mΩ ~ 30.000Ω

Basic accuracy: 0.5%

Voltage

Range:10μV~1000V

Basic accuracy: ±0.02%

Signal source: AC 1kHz, Test current: <150mA

Range: 3mΩ/30mΩ/300mΩ/3;Ω 4 ranges in all

Sampling rate: 1 meas/sec (the average number optional)

Temperature: Range:-10°C ~60°C Accuracy:±1°C

Correction: Short-circuit reset for all ranges

Comparator: 200 set WARNING/FAIL/PASS sorting

Internal data storage: Store up to 2400 set test data

Trigger: Internal/auto trigger

Interface: USB, EXPORT(port execute the hold function)

Power supply: 12V/1700mAh lithium battery, AA (LR6) Alkaline Batteries x 8

Maximum rated power: 4VA

Dimensions: 208 mm (L) x120mm (W) x 52.5mm (D),without sleeve, weight:0.81kg

Accessory: CH 9363B,CHT9371,CHT9348,USB mini cable,charger,0370 belt
