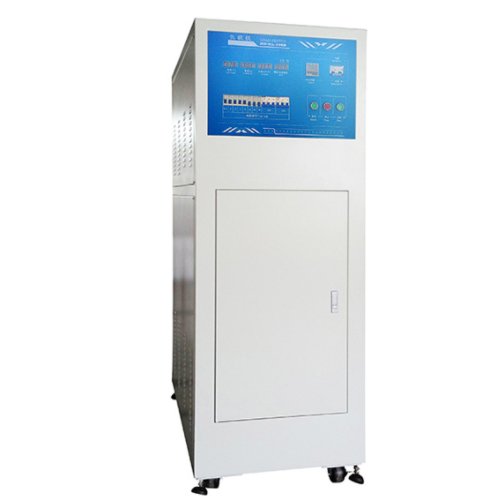

Hongdu HD-RL-100B Load Bank (AC 40V~290V, 1A~70A)

Input power: 220VAC±10%, 50/60Hz

Input current: AC 100

Output voltage: AC 40V~290V

Output current: AC 1A~70A

Power factor: ≤ 20A (Ф0.3-1), ≤40A (Ф0.6~Ф1); >40A(≥Ф0.9)

Voltage indicating accuracy: ±(0.4% reading +0.1% range +1 word)

Current indicating accuracy: ±(0.4% reading +0.1% range +1 word)

Precision of power factor meter: ±(0.004 +0.001/ reading +1 word)

Uninterruptible current output time: The longest time above 40A is 30 seconds

Long time under 40A

Overall dimensions: 850×1165×1840 (Width x depth x height)

Weight: about 300Kg
