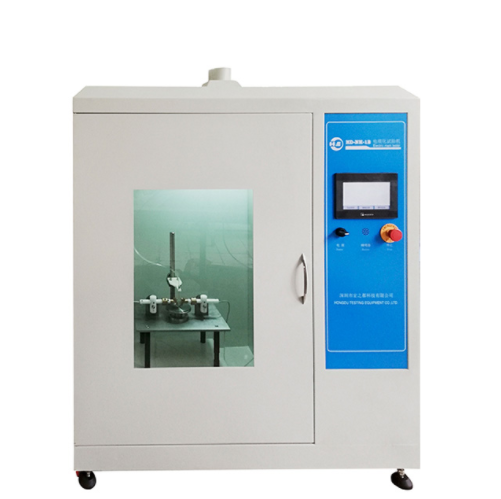

Hongdu HD-NH-1B Electric Trace Tester (1000W)

Input power: 220VAC±10%, 50/60Hz

Fuse: 5A/250VAC

Output power: 1000W

Electrode material: Test electrode - stainless steel, electrode post - stainless steel

Electrode size: (2mm ± 0.1mm) × (5mm ± 0.1mm) × (40mm ± 5), platinum electrode ≥ 12mm, slope 30° ± 1°

Electrode distance: 4.0mm ±0.1mm, angle 60°±2°

Electrode pressure: 1.00N ±0.05N (micro-adjustable)

Drop height: 35mm ± 5mm (adjustable)

Drop interval: 30s ± 5s (digital display, preset adjustment), 50 drops time 25min ± 2min

Drop number: 1~9999×1,×10,×100 (digital display, preset)

Test voltage: 100V~600V (25V index, adjustable)

Power supply voltage drop: 1.0A±0.1Aat ≤8%

Judging: ≥0.50A, 2.00s±1%

Dimensions: 820×800×400, exhaust aperture Φ75mm

Weight: About 55 Kg
