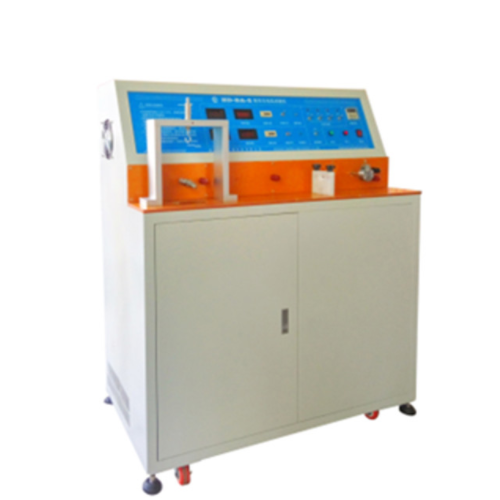

Hongdu HD-BA-2 Broken Beam and Arc Tester (2lbf)

Clamp: Two groups (one group of broken bundles, one set of arc experiments)

Power supply: AC220V±10%, 20A

Number of wires: 2 pieces

Motor power: 25W

Bending speed: 12 r.p.m

Counter: Two sets of counters

Load: 2 lbf(Power wire core AWG specifications: 18)

Volume: 220×1800×1200mm

Failure judgment: If the insulation is burned through, the experiment should be stopped, and the insulation burn-through is unqualified in the preset number of times or the number of cycles.
