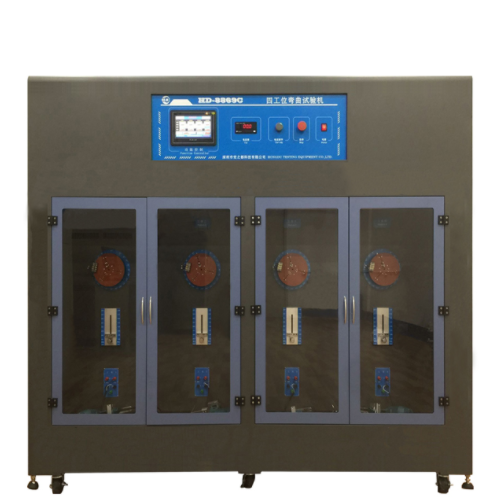

Hongdu HD-8869C Four Station Bending Test Machine (2000W, ±1°)

Input power: 220VAC±10%, 50/60Hz

Fuse: 10A/250VAC

Output power: 2000W

Sample core number: 3-core

Test station: Four stations

Fixture: Can be selected as needed

Inside: 0-30A

External load: 40-300V 0-20A

Bending angle: ±(5°~1440°)

Bending accuracy: ±1°

Bending speed: ±(5°~90°), 5~90 times/minute arbitrary setting;

±(91°~180°), 5~45 times/minute arbitrary setting

±(181°~1440°), 5 to 20 times/minute arbitrary setting

Testing frequency: 1 to 999999 times arbitrary setting (error: ±1 times)

Dimensions: 1450x800x1400 (WxDxH)
