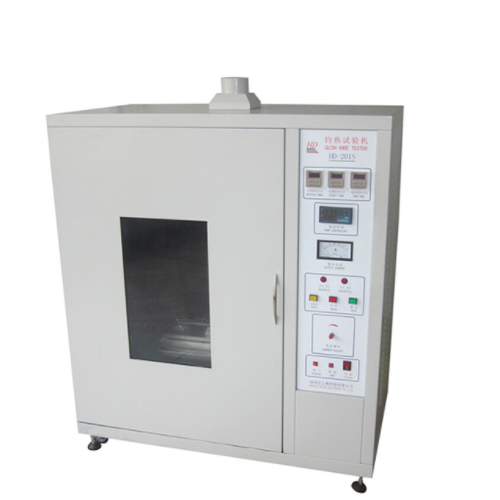

Hongdu HD-201S Burning Test Machine (1000W)

Operating voltage: AC220V, 50Hz, 10A

Glow wire temperature (current regulation): 0~1050℃

Heating current: (0~150A) continuously adjustable; and SCR automatic regulation

Temperature measurement accuracy: ±5°C (after 5 minutes of temperature stability)

Application time (TA): 0~99.99s can be set arbitrarily, set to 30s according to the standard, accuracy: 0.01S

Light off time (TI): With digital display time relay measurement, controlled by button, accuracy: 0.01S

Flame out time (TE): With digital display time relay measurement, controlled by button, accuracy: 0.01S

Glow wire presses the sample: 1±0.2N

Glow wire and sample relative displacement: 7mm

Maximum output power: 1000W

Dimensions: 1080×600×1400mm (Length × width × height)

Test room space: 0.5
