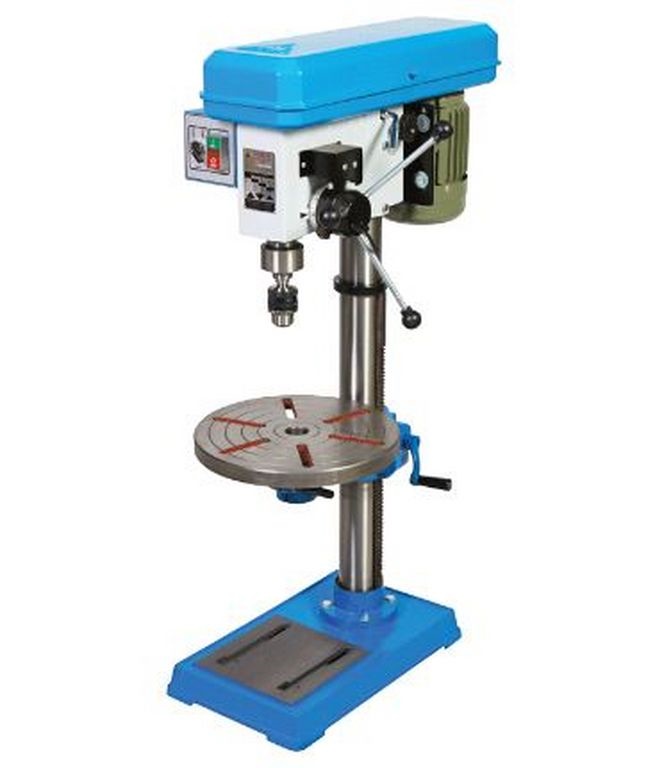

Hong Ky HK-KC12T Drill machine

Drill route 80 mm
Distance from bit to drilling plate 420 mm
Distance from bit to cyclinder 182.5 mm
Drill bit diameter 3 - 16/25 mm
Tap - Iron: M4-M10
- Cast iron: M4-M12
Diameter of cylinder 75 mm
Cone hole to fit the drill drive Cone 3
Speed stage 200-280-350-450-480-680-1155-1580-2220
Motor (HP, Phase) 1HP-3Phase-4P
Machine size 700X360X1200
Machine weight 95 Kg

Option: Can choose motor 3 phase

• All the drilling machine parts are processed under fully automatic technology ( CNC ) of Japan
• The accuracy between splines ( grooves ) is 0.05 mm ( 5/100)
• All the machine parts are precisely grinded 0.005 mm ( 5/1000)
• The set of axis is made of S45C steel that helps to increase the longevity
