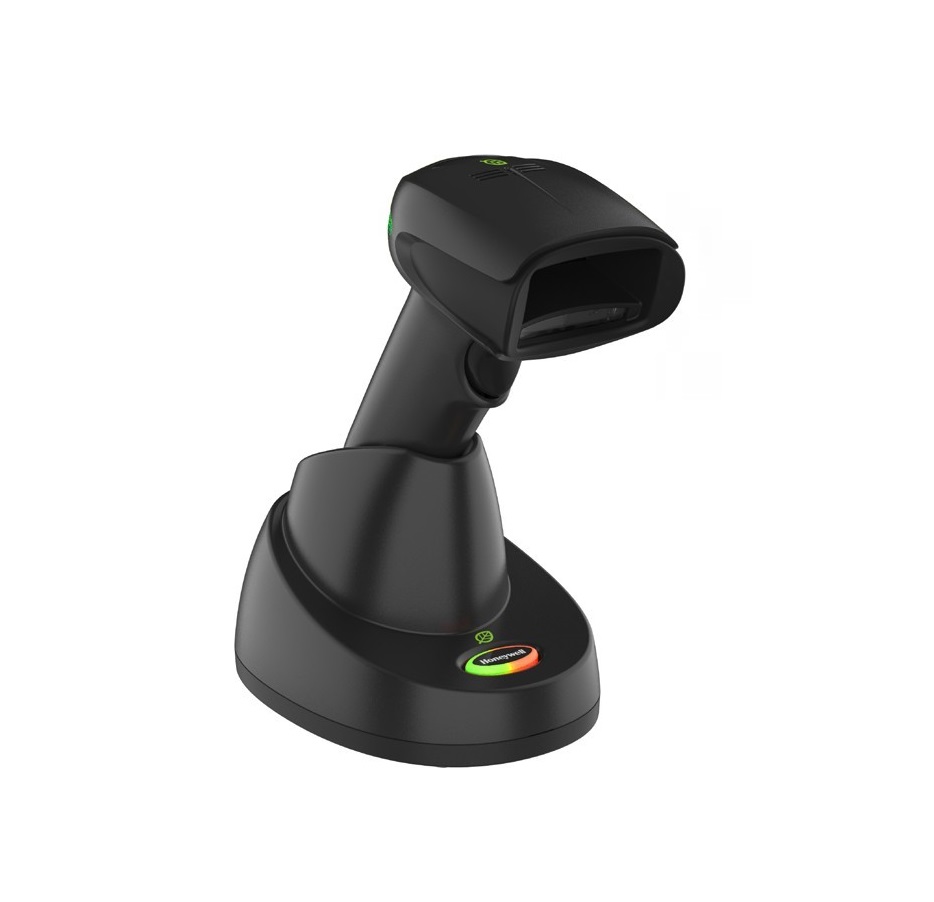

Honeywell Xenon XP 1952g-bf Battery Free Scanner (5W; Horizontal 48°/vertical 30°)

Overall Dimensions: 4.1 in x 2.8 in x 6.3 in (104 mm x 71 mm x 160 mm)

Weight: 195 g (6.9 oz)

Scanning specifications:

Brightness: 0 to 100,000 lux

9,290 ft-candles

Scan performance:

Scan Pattern: Area image (1280x800 pixel array)

Motion tolerance: Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus

Scan Angle:

HD: Horizontal: 48°; vertical: 30°

SR: Horizontal: 48°; vertical: 30°

Print contrast: 20% minimum reflectance difference

Roll, pitch, skew: ±360°, ±45°, ±65°

Operating power: 5W (1A @ 5V)

Host System Interface: USB, Keyboard Wedge, RS-232, IBM 46xx (RS485)

Datasheet
