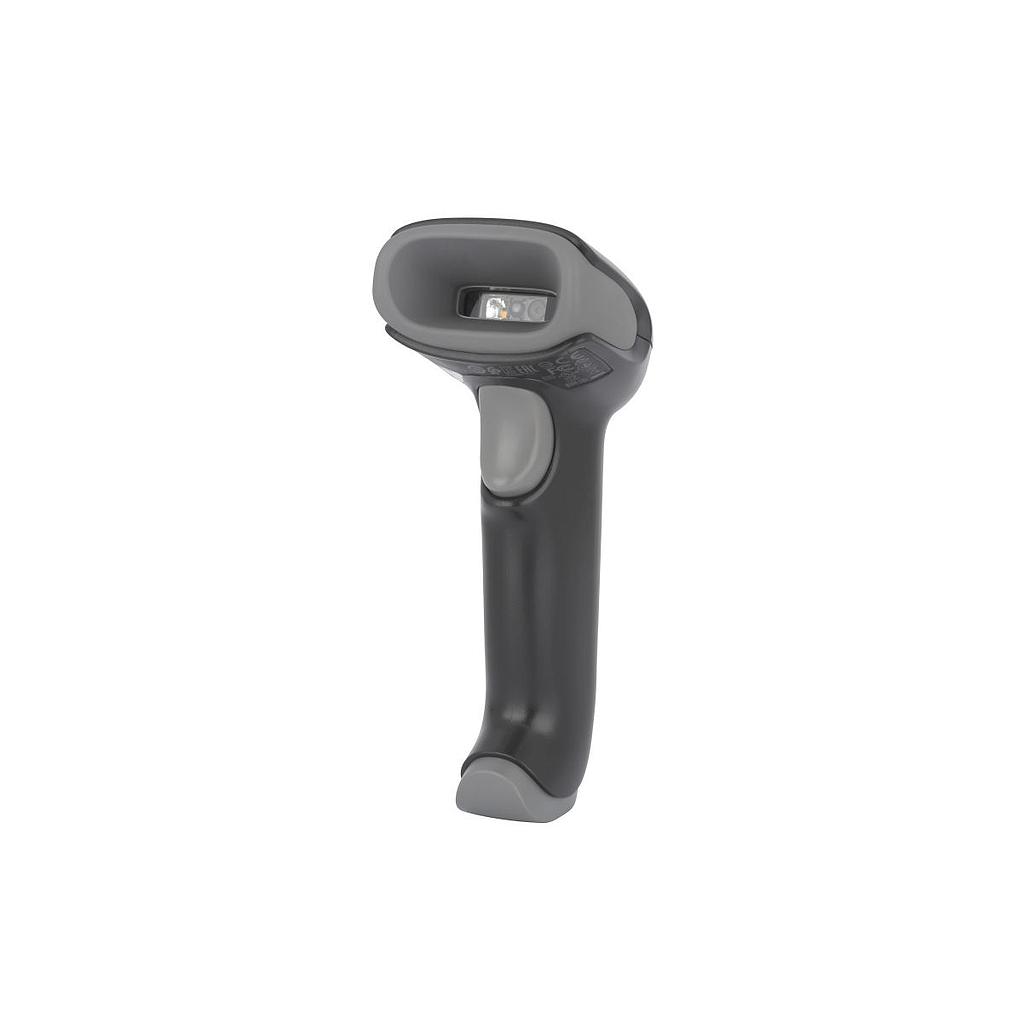

Honeywell Voyager XP 1472g General Duty Scanner (1D/2D; Horizontal 39.2°; Vertical 27.4°)

Dimensions: 62x173x82mm (2.5 in x 6.8 in x 3.2 in)

Weight: 210 g (7.4 oz)

Scanning performance:

Scan Pattern: Area Image (1040 x 720 pixel array)

Motion Tolerance: Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus

Scan Angle: Horizontal: 39.2° nominal; Vertical: 27.4° nominal

Print Contrast: 20% minimum reflectance difference

Roll, Pitch, Skew: ±180°, ±65°, ±70°

Number of scans: 50000

Decode Capabilities: Reads standard 1D, PDF, 2D, DotCode symbologies

Battery: 2400 mAh Li-ion minimum

Host System Interface: USB, Keyboard Wedge, RS-232, RS485
