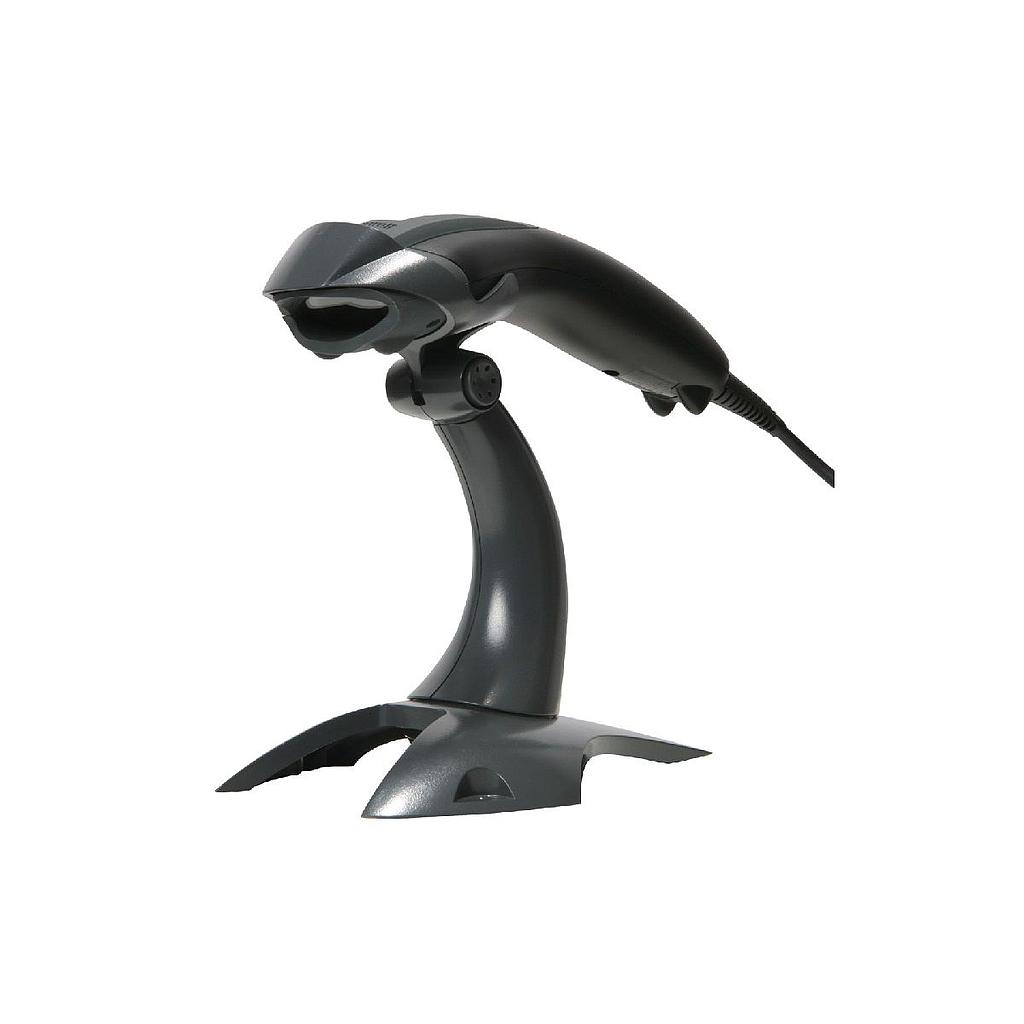

Honeywell Voyager 1200g General Duty Scanner (1D; GS1 DataBar; Single scan line)

Dimensions: 66 mm (3.0˝) X 180 mm (7.1˝) X 97 mm (3.8˝)

Weight: 125 g (4.4 oz)

Scanning performance:

Scan Pattern: Single scan line

Scan Angle: Horizontal: 30°

Print Contrast: 10% minimum reflectance difference

Pitch, Skew: 60°, 60°

Decode Capabilities: Reads standard 1D and GS1 DataBar symbologies

Input Voltage: 5 V DC

Operating power: 700mW; 140 mA (typical) @ 5V

Standby power: 350mW; 70 mA (typical) @ 5V

Host System Interface: USB, Keyboard Wedge, RS-232, RS485, RS-232C
