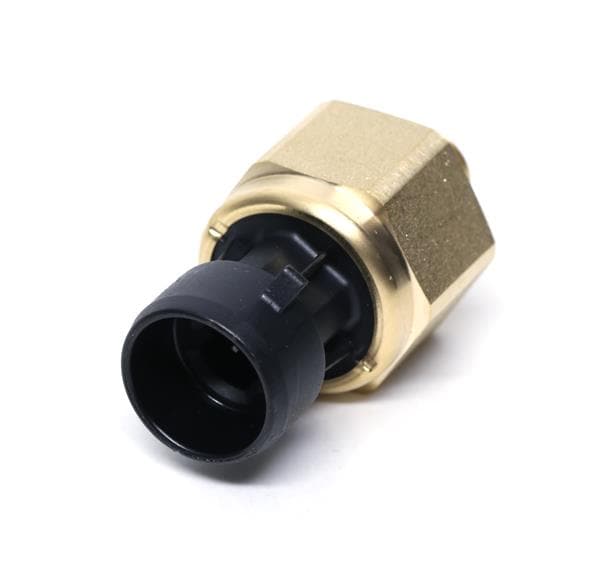

Honeywell PX3AN2BS150PSAAX Transducers Brass 1/8-27 NPT Sealed Gage

Length: 41.6 mm

Accuracy: 0.25 %

Diameter: 21.6 mm

Port Size: 1/8 in - 27 NPT

Output Type: Analog

Unit Weight: 285.768 g

Pressure Port: Port

Pressure Type: Sealed Gauge

Mounting Style: Panel Mount

Output Voltage: 500 mV to 4.5 V

Operating Pressure: 150 psi

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Operating Supply Current: 3 mA

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
