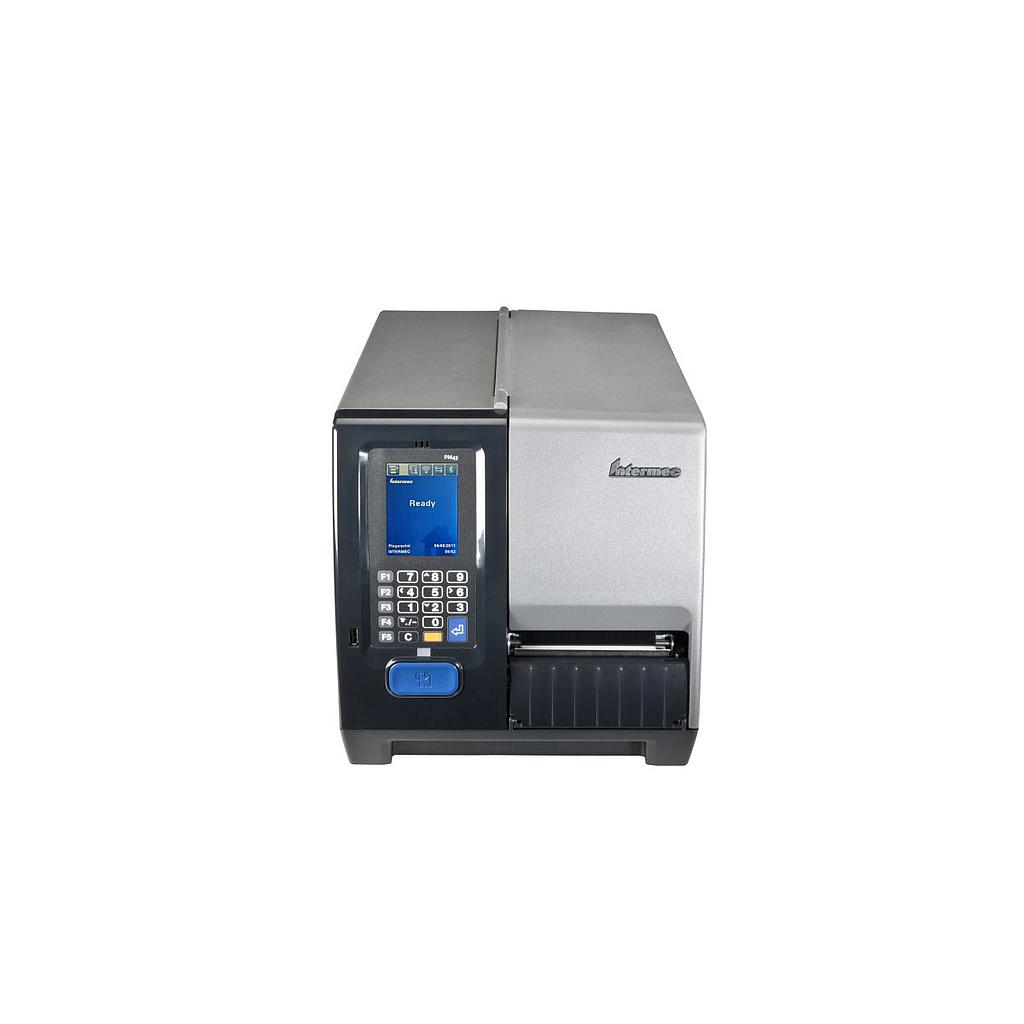

Honeywell PM43 Mid-Range Industrial Printers (100–300mm/s; 100–250 mm/s)

Print Method: Thermal Transfer and Direct Thermal

Dimensions (L x H x W): 483 mm x 295 mm x 284 mm (19.0 in x 11.6 in x 11.2 in)

Weight: 15.82 kg (34.88 lb)

Print specifications:

Max. Print Width:

203 dpi: 108 mm (4.25 in)

300 dpi: 106 mm (4.17 in)

406 dpi: 104 mm (4.09 in)

Max. Length:

203 dpi: 4.8 m (15.75 ft)

406 dpi: 1.2 m (3.94 ft)

Print speed: At 203/300 dpi: 100–300 mm/s (4–12 ips)

At 406 dpi: 100–250 mm/s (4–10 ips)

Resolution: 8 dots/mm (203 dpi), 11.8 dots/ mm (300 dpi), 16 dots/mm (406 dpi)

Label Roll Core: 38–76 mm (1.5–3 in)

Roll Max. Diameter: 80 mm (3.15 in), approx. 450 m
