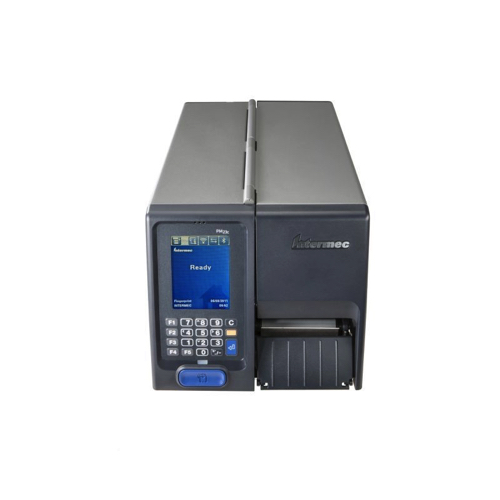

Honeywell PM23c Mid-Range Industrial Printer (8 dots/mm; 56mm; 4-12 ips)

Print Technology: Thermal Transfer, Direct Thermal

Resolution: 8 dots/mm

Max Print Width: 56 mm (2.2 in)

Print Speed: 100-300 mm/s (4-12 ips)

Connectivity Interface: Ethernet 10/100 Mbps, RS-232, up to 115.2 kB/s Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS IPL: XON/XOFF, Intermec Std. Protocol USB 2.0, USB Host (X1 on PM23C)

Optional Communication: Parallel IEEE 1284 Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port) Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop Dual USB Host

Wireless: IEEE 802.11 b/g/n + Bluetooth, Wi-Fi Certified, CCX (Cisco®) version 4 Certified, Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (TKIP/CCKM Personal and Enterprise), WPA2 (AES-CCMP/CCKM Personal and Enterprise), Industrial standard multi-antenna option for maximum coverage

Protocol Support: TCP/IP-suite (TCP, UDP, ICMP, IGMP), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP – (private enterprise MIB included), SMTP. Supports IPv4 and IPv6. Configuration

Memory: SDRAM: 128MB, Flash ROM: 128MB Extended Memory/Storage: Multi-GB USB memory device (FAT16/FAT32)

Sensors: Gap, notch, black mark, continuous

Media Width: Max/Min Width: 68.6mm/2.7 in (19.05mm/0.75in)

Media Type: Labels and tags, linerless and linered labels

Media Style: Roll or fanfold

Max Media Roll Diameter: Long Door: 152 mm (6 in) All Other Doors: 213 mm (8.38 in)

Media Core: 38-76 mm (1.5-3 in)

Ribbon Material Type:

Max Roll Diameter: 61 mm (2.40 in), 229 m

Core ID: 25 mm (1 in) Ribbon Type: Wax, mid-range, resin

RFID Standards and Frequency: 18000-6C / EPC Class 1 Generation 2 865–928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.

Printer Command Languages: IPL, DP, ZSim (ZPL), DSim (DPL) XML enabled for use with SAP® AII and Oracle® WMS
