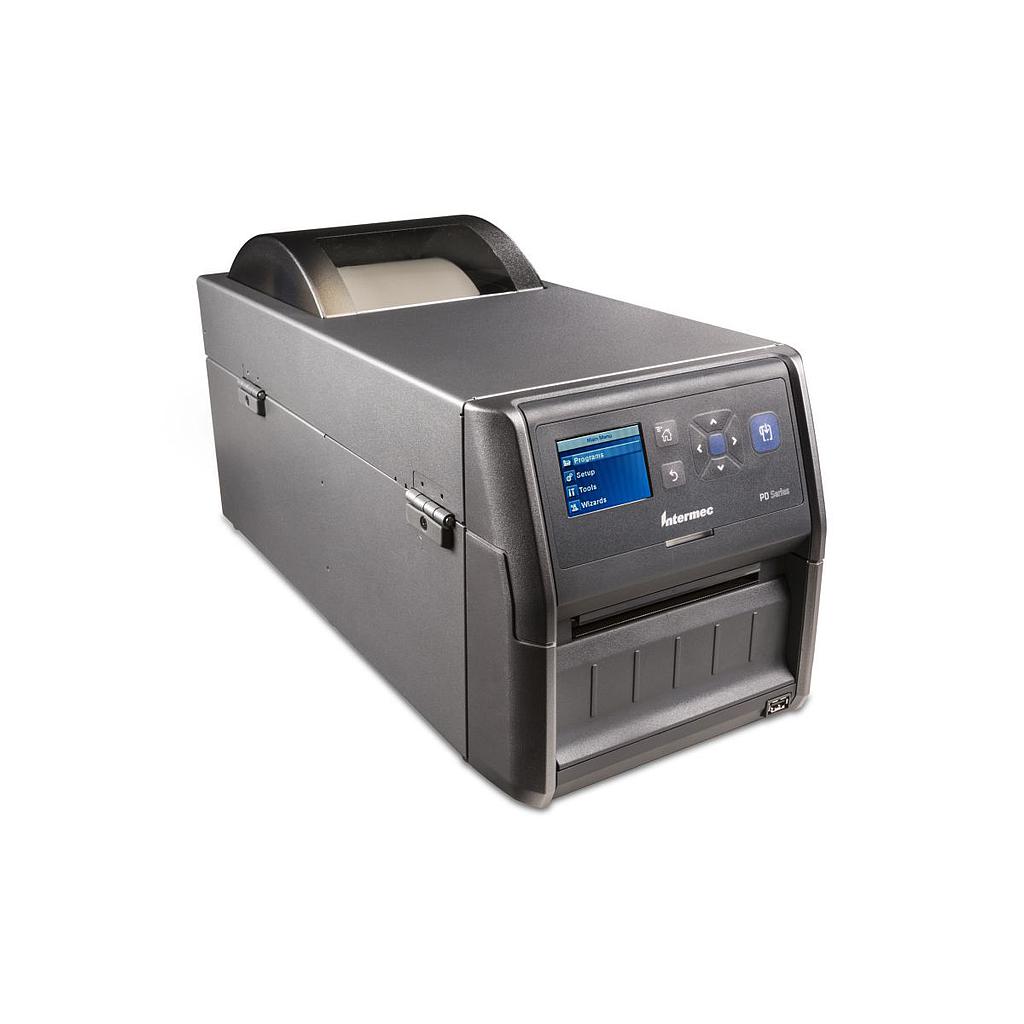

Honeywell PD43 Light Industrial Thermal Printer (8.0 dpmm; 11.8 dpmm)

Dimensions: with Standard Door/ with Flat Top Door:

Length: 470 mm (18.5 in)

Width: 211 mm (8.3 in)

Height: 249 mm (9.8 in)/209 mm (8.2 in)

Weight: 8.4 kg (18.5 lbs)/8.3 kg (18.3 lbs)

Max. Media Diameter (OD): with Standard Door/ with Flat Top Door: 213 mm (8.375 in)/ 152 mm (6.0in)

Media Width: 19mm (0.75 in) to 118 mm (4.65 in)

Label Length: 6.4 mm (0.25 in) to 172.7 cm (68.0 in)

Max. Ribbon Diameter: 68mm (2.68 in)

Ribbon Width: 25.4 mm (1 in) to 110.0 mm (4.3 in)

Max. Ribbon Length: 300 m (984 ft)

Print Resolution : 8.0 dpmm (203 dpi), 11.8 dpmm (300 dpi)

Max. Print Speed: 203 mm/s (8.0 ips) @ 8.0 dpmm (203 dpi), 152 mm/s (6.0 ips) @ 11.8 dpmm (300 dpi)

Max. Print Width: 104 mm (4.1 in)

Standard Interfaces: USB Device, USB Host

Memory: 128 MB Flash, 128 MB RAM (DDR2)
