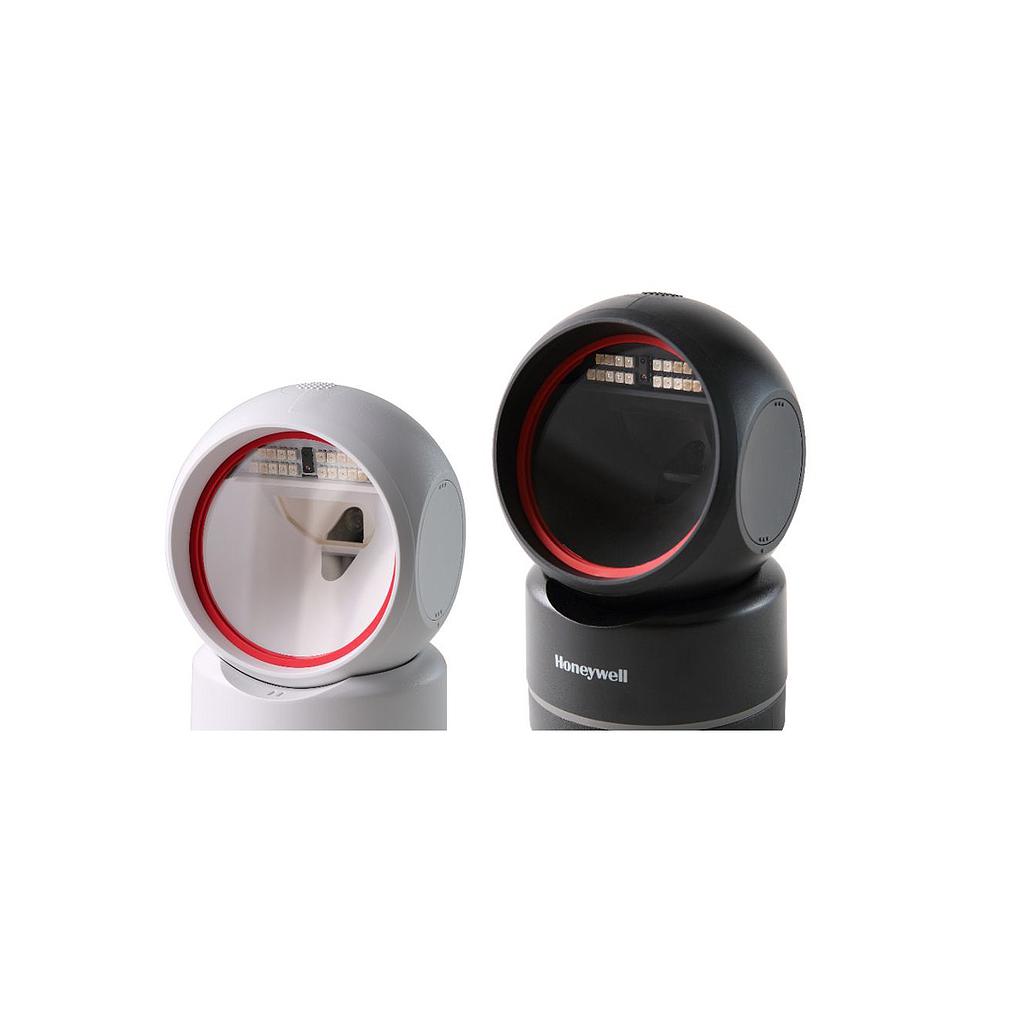

Honeywell Orbit HF680 2D Hands-Free Area-Imaging Scanner (1D/2D, SR, 1280×800 pixel)

Dimensions (L x W x H): 85 mm × 88 mm × 39 mm

Input Voltage: 5.0V DC

Operating Power: 2.0 W (400mA @ 5V)

Host System Interfaces: USB, RS-232

Scan performance:

DPI: 1280 × 800 pixel

Motion Tolerance: Up to 2.5 m/s for 13 mil UPC at optimal focus

Scan Angle: Horizontal: 47°;

Vertical: 30°

Print Contrast: 20% minimum reflectance difference

Pitch, Skew: +/-60°, +/-70°

Decode Capability: Reads standard 1D, PDF, 2D Symbologies
