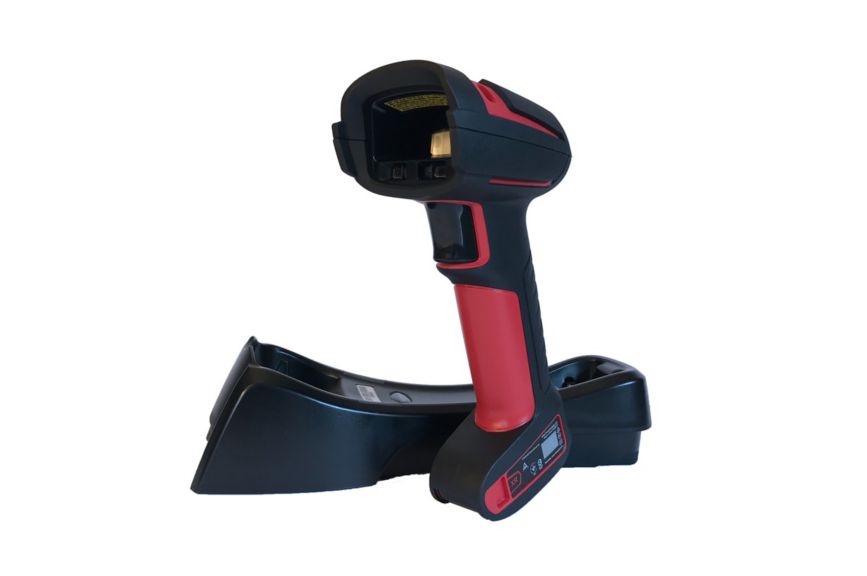

Honeywell Granit 1991iXR Granit 1991iXR Ultra-Rugged FlexRange™ Scanner

MECHANICAL

Dimensions – Scanner (L x W x H):

192 mm x 76 mm x 100 mm (7.6 in x 3.0 in

x 3.9 in)

Dimensions – Base (L x W x H): 245 mm x

102 mm x 60 mm (9.6 in x 4.0 in x 2.4 in)

Weight – Cordless: 405 g (14.3 oz)

WIRELESS

Radio/Range: 2.4 GHz (ISM Band)

Adaptive Frequency Hopping Bluetooth®

v4.2; Class 1: 100 m (330 ft) line of sight

POWER OPTIONS

Battery: 2450 mAh Li-ion minimum

Number of Scans: Up to 50,000 scans per

charge

Expected Duration of Operation:

14 hours (1 scan per second)

User Indicators: Good Decode LEDs,

Beeper (adjustable tone and volume),

Vibration (adjustable), Bluetooth®

connectivity, Battery status

ELECTRICAL

Input Voltage: 4.0 VDC to 5.5 VDC

Operating Power – Cordless: 5 W

(1000 mA @ 5 VDC)

Standby Power – Cordless (non-charging

power): 0.6 W (120 mA @ 5 VDC)

Host System Interfaces: USB, Keyboard

Wedge, RS-232 TTL

ENVIRONMENTAL

Operating Temperature*:

-20°C to 50°C (-4°F to 122°F)

Storage Temperature: -40°C to 70°C

(-40°F to 158°F)

Humidity: Up to 95% relative humidity,

non-condensing

Drop:

2 m (6.5 ft): 50 drops from -30°C to

50°C (-22°F to 122°F), uncontrolled RH

2.4 m (8 ft): 20 drops at 25°C (77°F),

55% RH

3 m (10 ft): MIL-STD-810G, 25°C (77°F),

55% RH

Tumble: 7,000 1 m (3.3 ft) tumbles

Environmental Sealing – Scanner:

IP67 and IP65

Environmental Sealing –

Charge/Communication Base: IP51

Light Levels: 0 to 100,000 lux

(9,290 foot-candles)

ESD: ±20 kV air discharge, ±8 kV contact

discharge

SCAN PERFORMANCE

Scan Pattern: Area Imager (1280 x 800

pixel array)

Motion Tolerance: Up to 4500 mm/s

(177 in/s)

Scan Angle: Horizontal: 40°, Vertical: 30°

Print Contrast: 20% minimum reflectance

difference

Roll, Pitch, Skew: -360°, 45°, 65°

Decode Capabilities: Reads standard 1D,

PDF, 2D, Postal, Digimarc, DOT Code and

OCR symbologies

Warranty – Scanner: Three-year factory

warranty

Warranty – Battery Pack: One-year factory

warranty

TYPICAL PERFORMANCE**

Narrow Width Extended Range

5 mil Code 39 20 mm to 220 mm

(0.8 in to 8.7 in)

10.4 mil C128 3 mm to 343 mm

(0.1 in to 13.5 in)

13 mil UPC 0 mm to 1520 mm

(0 in to 59.8 in)

15 mil C128 0 mm to 1727 mm

(0 in to 68 in)

20 mil Code 39 0 mm to 2236 mm

(0 in to 88.0 in)

6.7 mil PDF 417 20 mm to 209 mm

(0.8 in to 8.2 in)

10 mil Data Matrix 30 mm to 220 mm

(1.2 in to 8.6 in)

20 mil QR Code 0 mm to 484 mm

(0 in to 19.1 in)

22 mil QR Code 0 mm to 1671 mm

(0 in to 65.8 in)

70 mil C128

136 mm to

7240 mm (5.4 in

to 285 in)

Min. resolution 1D

Code 39 3 mil (0.076 mm)

Min. resolution 2D

Data Matrix 6 mil (0.152 mm)

100 mil Code 39 10 m (33 ft)
