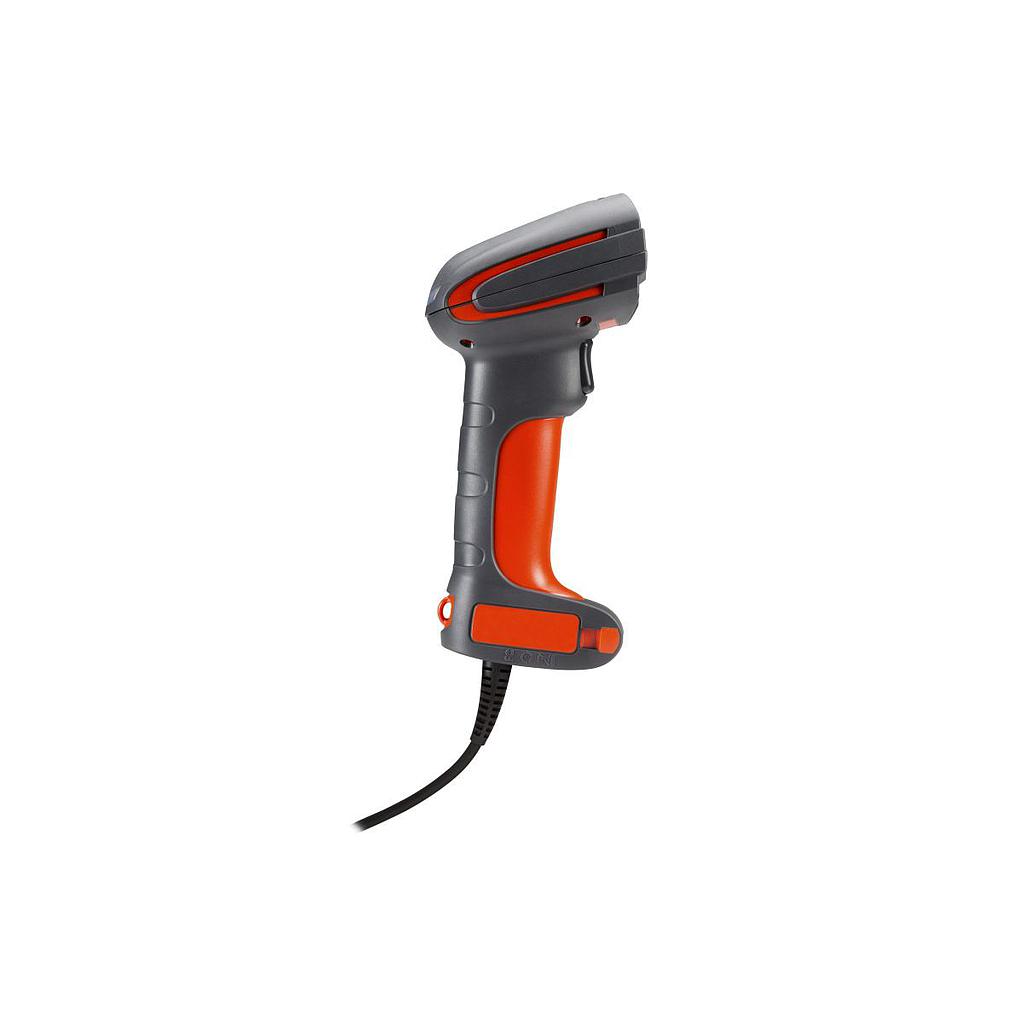

Honeywell Granit 1920i Industrial Direct Part Mark (DPM) Area-Imaging Scanner (1D/2D DPM, SR, Area Image)

Dimensions (L x W x H): 134 mm x 74.5 mm x 193 mm (5.27 in x 2.93 in x 7.6 in)

Input Voltage: 4.0V DC – 5.5V DC

Operating Power: 2.35 W (470 mA @5V DC)

Host System Interfaces: USB, Keyboard Wedge, RS-232

Scan performance:

Scan Pattern: Area Imager

Print Contrast: 25% minimum reflectance difference

Decode Capability: Reads standard 1D, stacked, 2D and postal symbologies

Min. Resolution: 1D 2.5 mil; 2D 4 mil

Pitch, Skew: 1D: ±45°, ±65°; 2D: ±45°, ±45°

Scan Angle: Horizontal: 41.4°; Vertical: 32.2°
