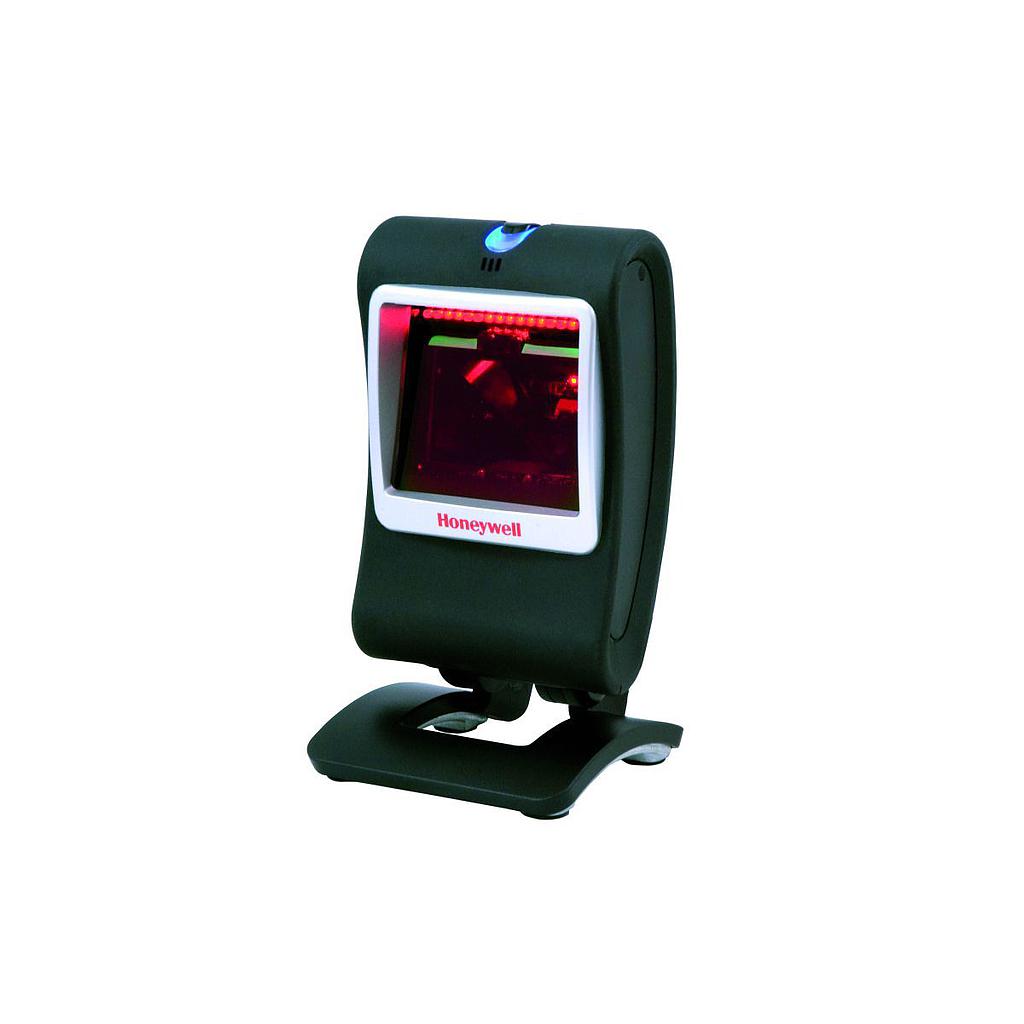

Honeywell Genesis 7580g Area-Imaging Scanner (1D/2D, SR, Area Image)

Dimensions (L x W x H): 80 mm x 83 mm x 150 mm (3.2 in x 3.3 in x 5.9 in)

Input Voltage: 5.5V DC ±0.25V

Operating Power: 2.0 W (400mA @ 5V)

Host System Interfaces: USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)

Scan performance:

Scan pattern: Area Image (832 x 504 pixel array)

Motion Tolerance: 200 cm/s (78 in/s) for 13 mil UPC at optimal focus

Scan Angle: Horizontal: 46°;

Vertical: 28°

Print Contrast: 20% minimum reflectance difference

Pitch, Skew: 70°, 75°

Decode Capability: Reads standard 1D, PDF, 2D, Postal, and OCR symbologies
