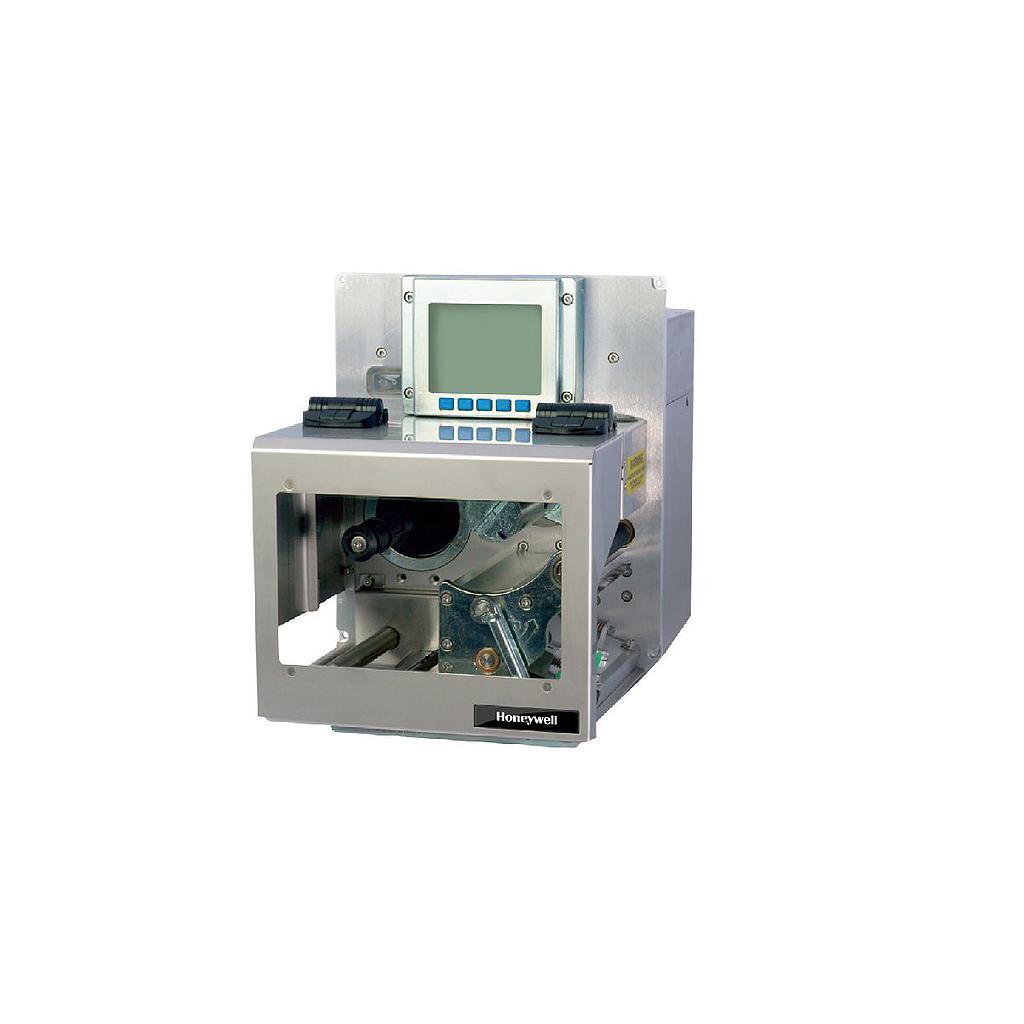

Honeywell A-4606 Print Engines for OEM Applications (152 mms; 24 mmps)

Dimensions (H x W x D): 299 mm x 246 mm x 390 mm (11.81 in x 9.67 in x 15.35 in)

Weight: 15.3 kg (34 lbs)

Printer Type: Direct thermal, optional thermal transfer

Print Length Range: 6 mm to 254 cm (0.25 in to 100 in)

Maximum Print Width: 105.6 mm (4.2 in)

Print Speed/Resolution: 152 mms (6 ips), 24 mmps (600 dpi)

Communication Ports (Standard 4 Port): Serial RS-232, parallel bi-directional, Ethernet-wired LAN 10/100, USB 2.0 compatible, GPIO applicator card

Memory: 8 MB Flash/16 MB RAM

Electric: Auto-ranging switching type

AC Input Voltage Range: 90 to 132/180 to 264 VAC @ 47 to 63 Hz, auto-ranging

Power Consumption: 200 W typical operating, 25 W standby
