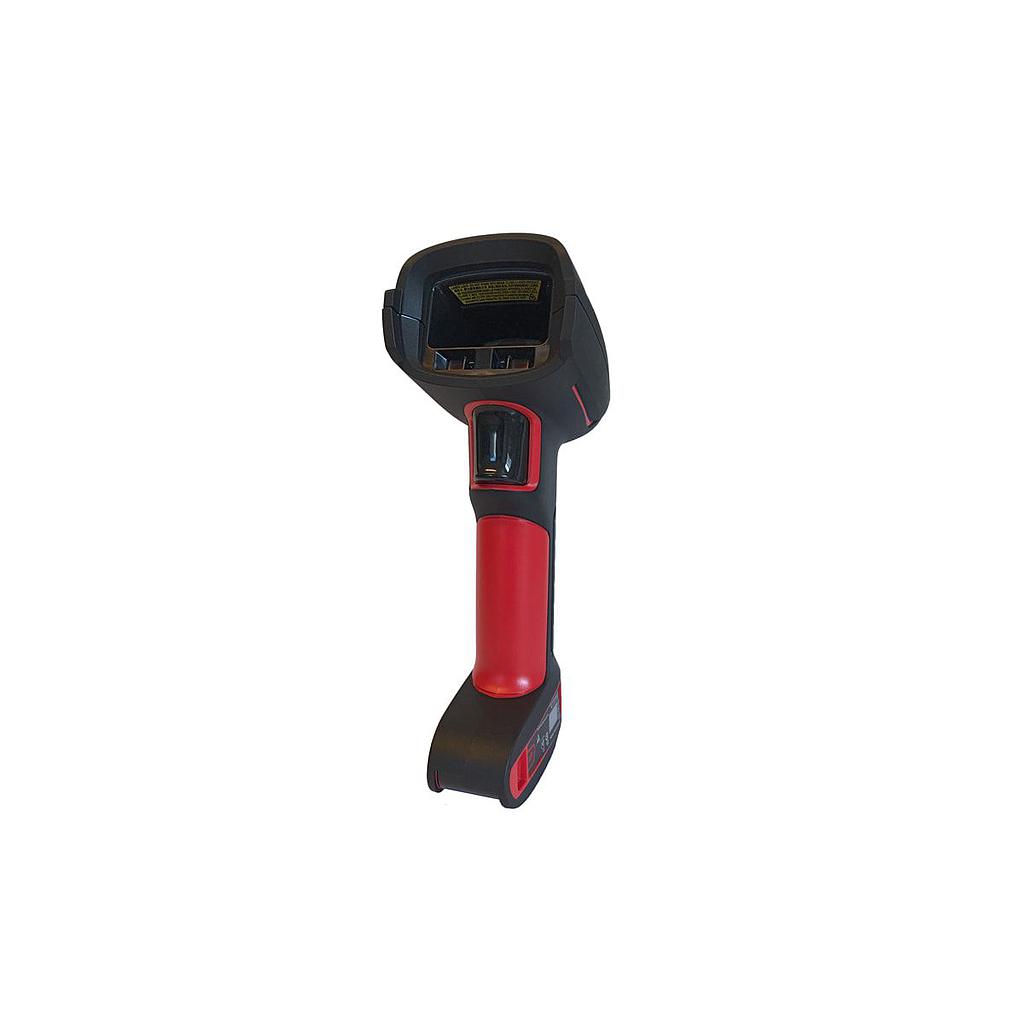

Honeywell 1990iSR Ultra-Rugged Area-Imaging Scanner (1D/2D, SR, Area Image)

Dimensions (L x W x H): 7.6 in x 3.0 in x 3.9 in (192 mm x 76 mm x 100 mm)

Input Voltage: 4.0 VDC to 5.5 VDC

Operating Power: 2.35 W (470 mA @ 5 VDC)

Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL

Scan performance:

Scan Pattern: Area Imager (1280 x 800 pixel array)

Motion Tolerance: Up to 4500 mm/s (177 in/s)

Scan Angle: Horizontal: 40°, Vertical: 30°

Print Contrast: 20% minimum reflectance difference

Roll, Pitch, Skew: -360°, 45°, 65°

Decode Capabilities: Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies
