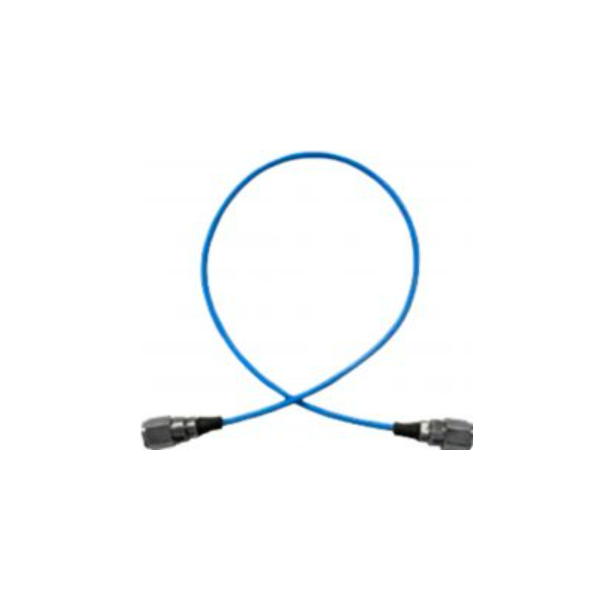

Honestco SXL-12F MicroWave Flexible Cables

Impedance: 50±2.0 (Ω)

Outer conductor diameter: 1.15±0.01mm

Innner conductor diameter: 0.287+0.010/0.287-0.005 mm

Insulator diameter: 0.9+0.05mm/0.9-0.03mm

Capacictance: 98 pF/m

Insulation dielectric strength (VRMS): 3000

Corona generating voltage (VRMS): 1000

Higher order mode: 113 GHz

Wavelength shortening: 70%

The minium bending radius: 3.0mm

Weight: 5.5g/m

Attenuation/Electric Power Capacity (Db/M) (W) (20°C, sea level):

1.0GHz: 1.24

5.0GHz: 3

10.0GHz: 4.45

18.0GHz: 6
