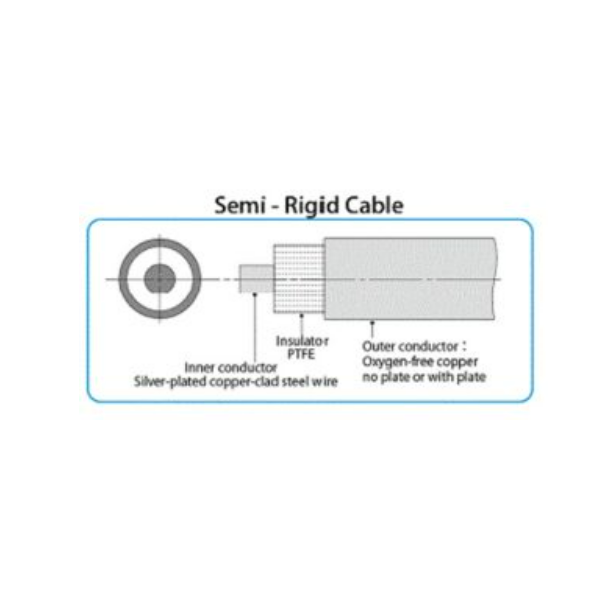

Honestco SX-36 Semi Rigid Cables (0.141")

Impedance: 50±0.5 (Ω)

Outer conductor diameter: 3.581±0.025mm

Innner conductor diameter: 0.919±0.017mm

Insulator diameter: 2.985±0.051mm

Capacictance: 95 pF/m

Insulation dielectric strength (VRMS): 5000

Corona generating voltage (VRMS): 2000

Higher order mode: 34 GHz

Wavelength shortening: 70%

The minium bending radius: 6.5mm

Weight: 46.0 g/m

The highest temperature: 125°C

Attenuation/Electric Power Capacity (Db/M) (W) (20°C, sea level):

0.5GHz: 0.24/600

1.0GHz: 0.34/450

5.0GHz: 0.84/180

100GHz: 1.25/120

20.0GHz: 1.90/70

30.0GHz: 2.45
