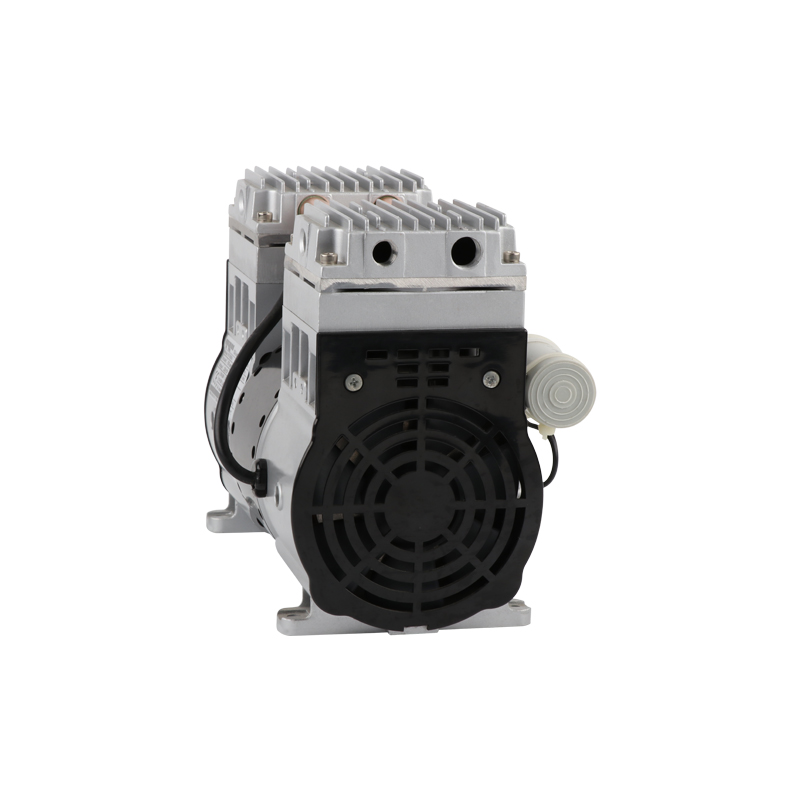

Hokaido HP-200C Oil-free piston compressor (≤ 120 W; ≤ 1.3 m³/h; 200 Kpa)

Rated voltage/frequency: 220V/50Hz/4uF

Input power: ≤120,0.6A W

Rated airflow: ≤1.3 m³/h

Rated working pressure: 100 Kpa

Max working pressure: 200 Kpa

Sound: ≤48 dB(A)

Ambient temperature: 5-40 ℃

Insulation class: B

Cold insulation resistance: ≥100 MΩ

Breakdown strength: 1500V/50Hz (1 min)

Thermal protection: Automatic reset 130±5 ℃

Weight: 1.8 Kg

Installation dimension: L100*W74 mm

Overall dimension: L143*W85*H121 mm

Restart pressure: 0 Kpa

Inlet/outlet size: Φ5mm
