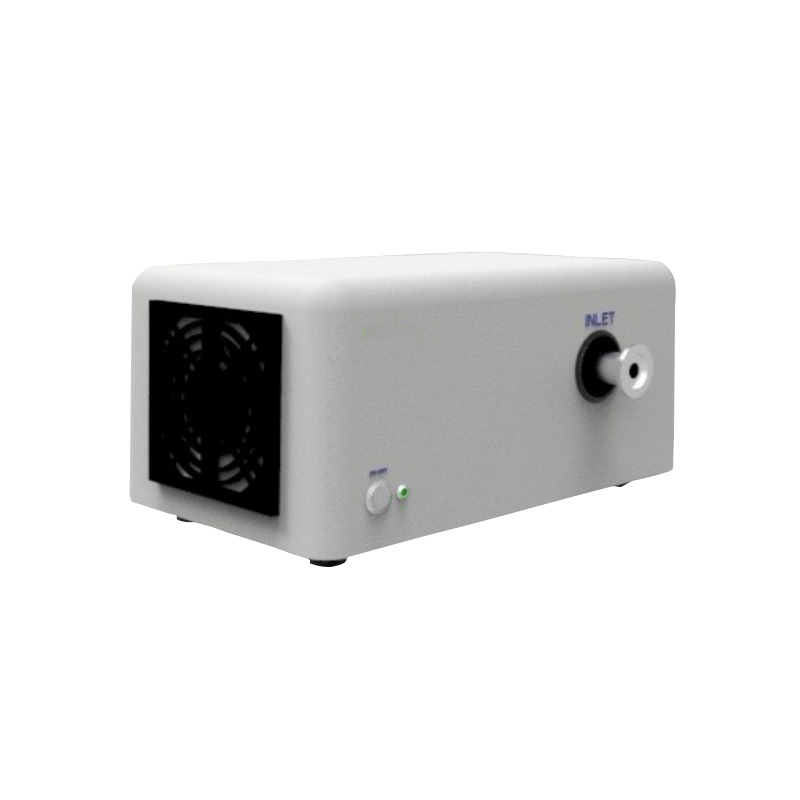

Hokaido HF-E2-100 Magnetic floating vacuum pump (100 L/min, ≤ 0.03mbar (3Pa), 350W)

Pumping speed: 100 L/min

Ultimate pressure: ≤ 0.03mbar (3Pa)

Motor power: 350W

Installed power: 200W

Motor type: Brushless DC motor

DC voltage: 48VDC

AC voltage: 100-240VAC

MAX motor speed: 4000RPM

Maximum steam treatment capacity: no limit

Max inlet pressure: no limit

Max outlet pressure: 1 bar (gauge pressure)

Leakage rate: 1x10^-9pa^.m³/s

Noise(OEM): 60dB(A)

Noise(with housing): 56dB(A)

Weight (OEM): 6.7kg

Weight(with housing): 7.8kg

Size(OEM): 324x225x175mm

Size(with housing): 394x236x189mm

Inlet/outlet port connection: KF-25 or G3/8"

Cooling type: air cooling

Working ambient temperature: -40°C to 50°C
