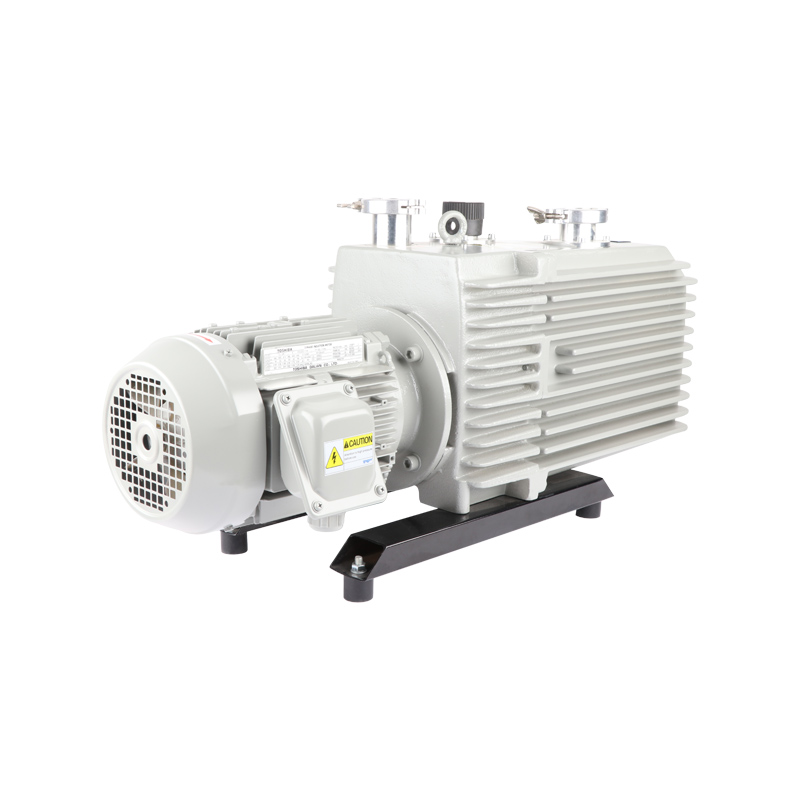

Hokaido 2RH065D Double-stage Rotary Vane Vacuum Pump (2.2 Kw, 65 m³/h (50 Hz), 78 m³/h (60 Hz), 6.0x10-3 mbar)

Pumping Speed:

(50Hz): 65m3/h

(60Hz): 78m3/h

Ultimate Pressure w/o gas ballet: 4.0x10-4 mbar

Ultimate total Pressure w/o gas ballet: 3.0x10-3 mbar

Ultimate Pressure w/gas ballet: 6.0x10-3 mbar

Water VaporΔP: 30 mbar

Inlet/Outlet Flange: KF40"

Voltage:

(50Hz): 380-415v

(60Hz): 400-440v

Nominal motor rating: 2.2 Kw

Current:

(50Hz): 5.0/4.9A

(60Hz): 4.9/4.3A

Motor speed:

(50Hz): 1440

(60Hz): 1720

Noise: 58/60 dB(A)

Oil (min/max): 4.6/5.0L

Weight(w/o oil): 83Kg

Datasheet
