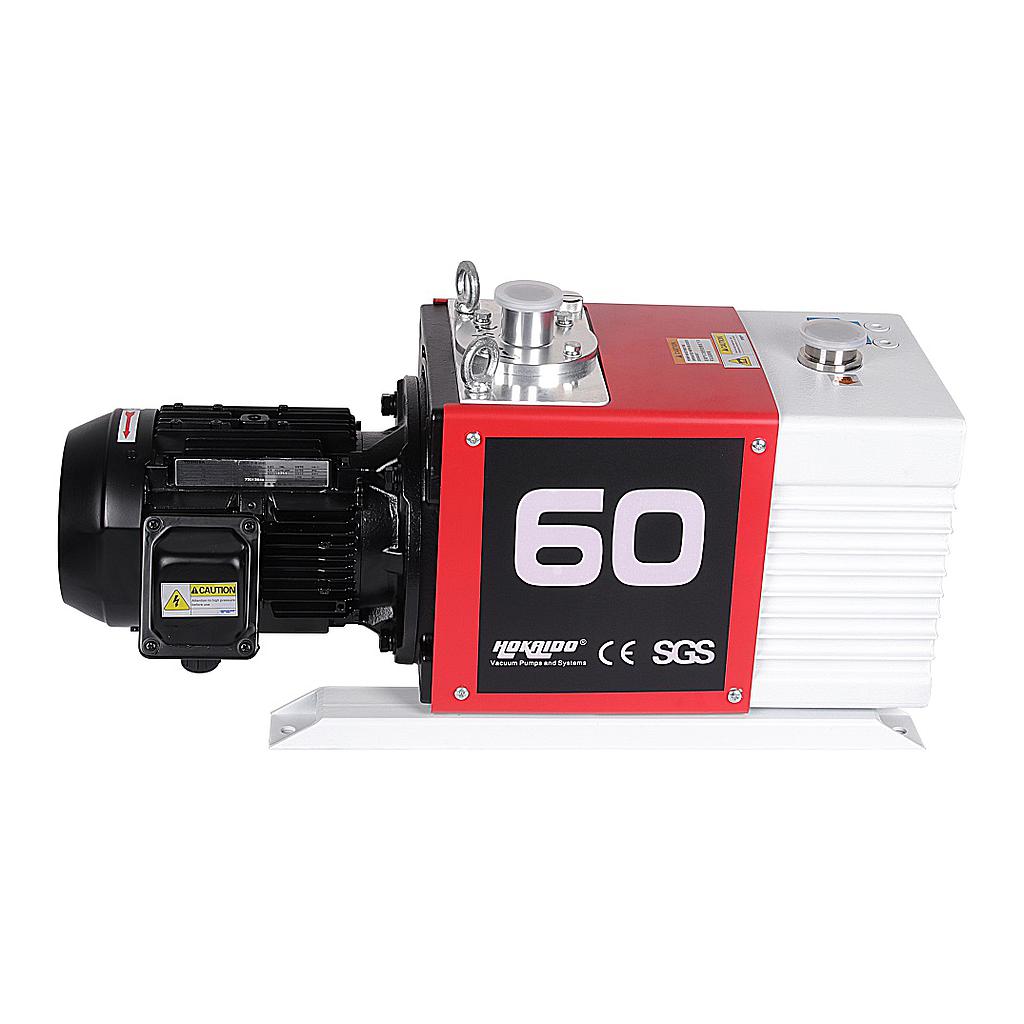

Hokaido 2RH060C Double-stage Oil-lubricated rotary vane vacuum pump (2.2 Kw, 60 m³/h (50 Hz), 72 m³/h (60 Hz), 0.5Pa)

Pumping Speed:

(50Hz): 60m3/h

(60Hz): 72m3/h

Ultimate Pressure w/o gas ballet: 7.0x10^-4 mbar

Ultimate total Pressure w/o gas ballet: 5.0x10^-3 mbar

Ultimate Pressure w/gas ballet: 2.0x10^-4

Water VaporΔP: 30 mbar

Inlet/Outlet Flange: KF40"

Voltage:

(50Hz): 220-240/380-420v

(60Hz): 220-280/380-460v

Nominal motor rating: 2.2 Kw

Current:

(50Hz): 9.57/5.40A

(60Hz): 11.5/6.48A

Motor speed:

(50Hz): 1440

(60Hz): 1700/1720

Noise: 70 dB(A)

Oil (min/max): 2.5/4.2L

Weight(w/o oil): 91Kg

Datasheet
